Charger SRT-8 V8-6.1L (2009)
Fuse: Locations
Power Distribution Centers - SRT8

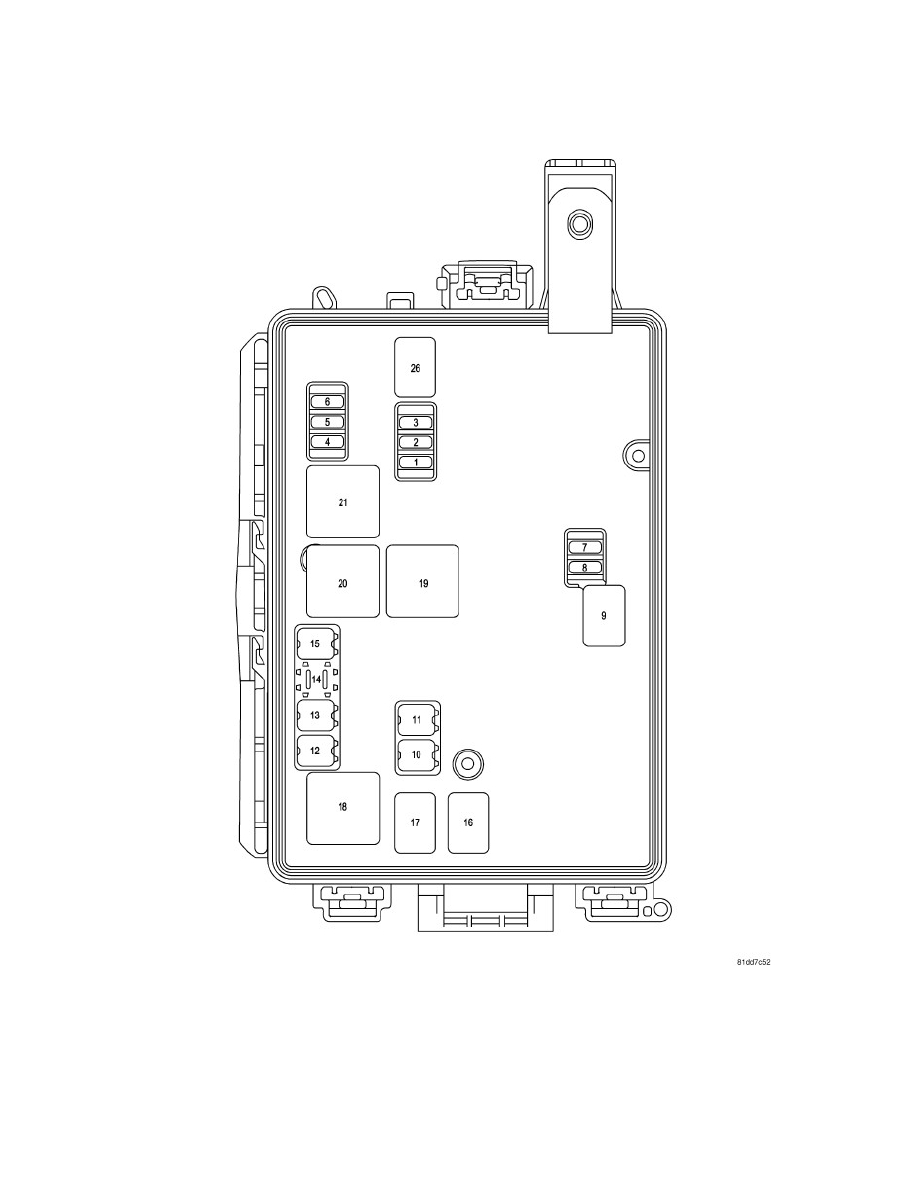

Integrated Power Module
The Integrated Power Module (IPM) is located in the engine compartment. This module contains fuses and relays.
CAUTION:
-
When installing the Power Distribution Center cover, it is important to ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get into the Power Distribution Center, and possibly result in an electrical system
failure.
-
When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a
rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be corrected.
