D50/Ram 50 L4-2350cc 2.4L SOHC (1992)
Drive Belt: Specifications

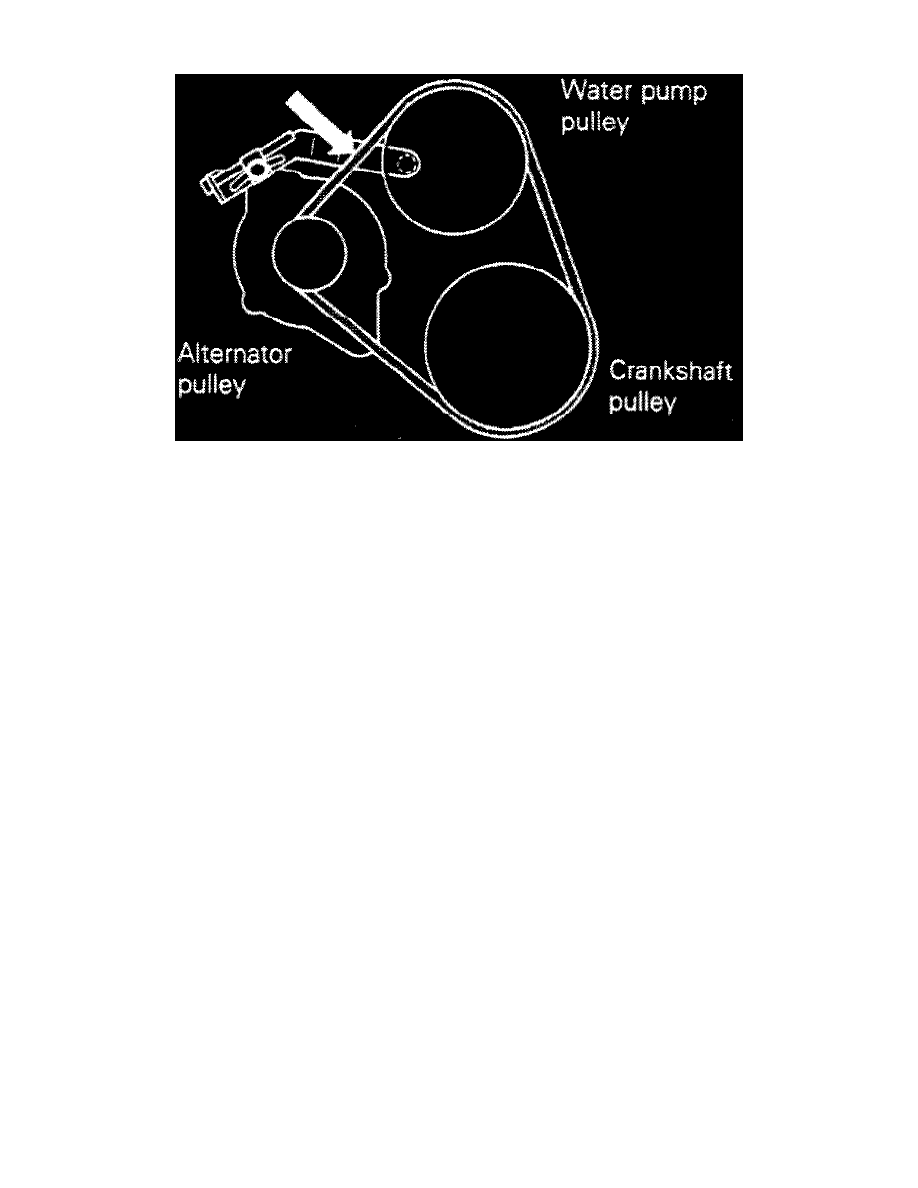

Fig.22 Drive Belt Deflection Inspection
Deflection ........................................................................................................................................................................................................ 0.276 - 0.394
(1) Deflection must be as specified, when depressed at a point midway between the water pump and the alternator with a force of 22 lbs, Fig.22.
