Dakota 2WD V6-239 3.9L Magnum (1996)

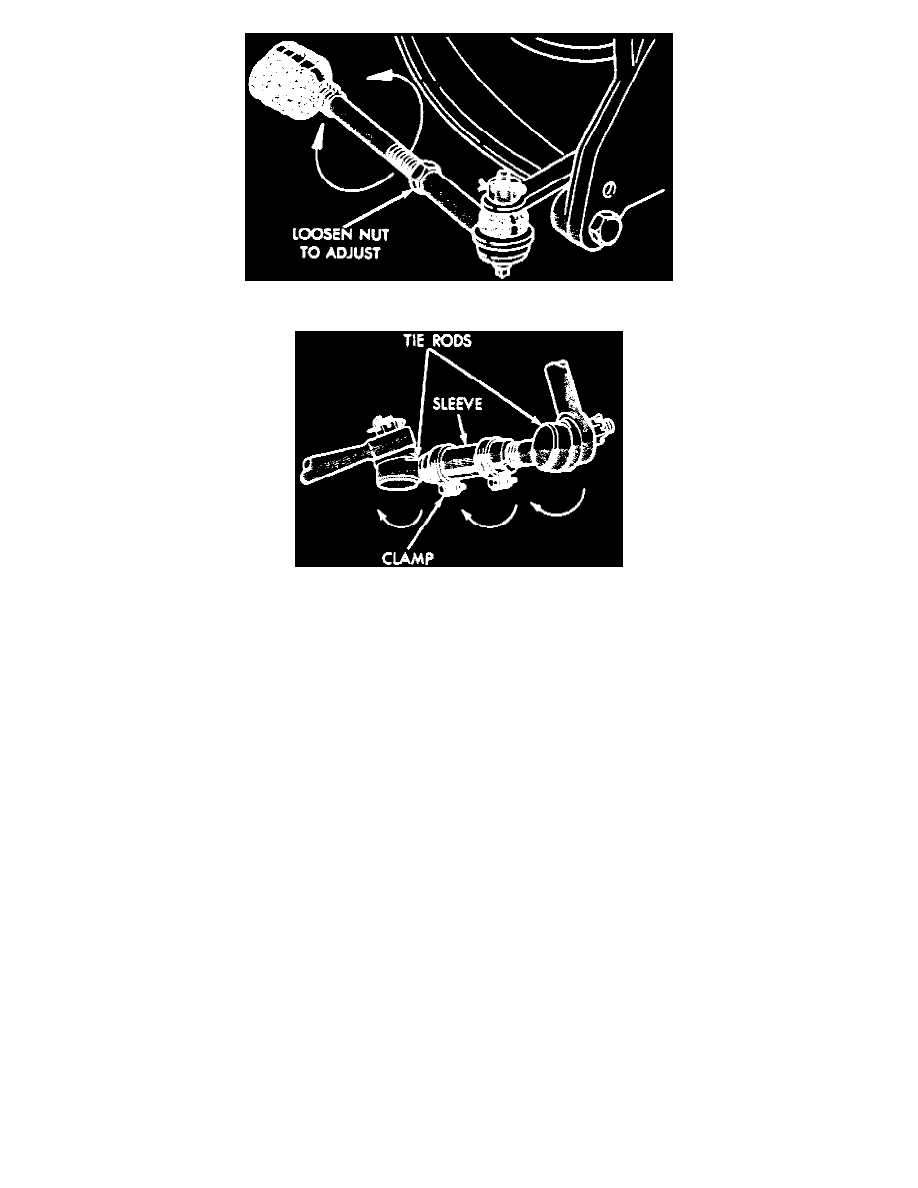

Fig. 2 Toe Adjustment. 2WD Models
Fig. 3 Toe Adjustment 4WD Models
2. Loosen tire rod adjustment sleeve camp bolts or nut.
3. Adjust toe-in by turning sleeves. Each wheel should be adjusted 1/2 total specification to ensure steering wheel being centered.
4. Torque locknut to 55 ft. lbs. or clamp bolts to 17 ft. lbs.
