Dakota 2WD V8-4.7L (2008)

Page 1
background image

Flex Plate: Specifications

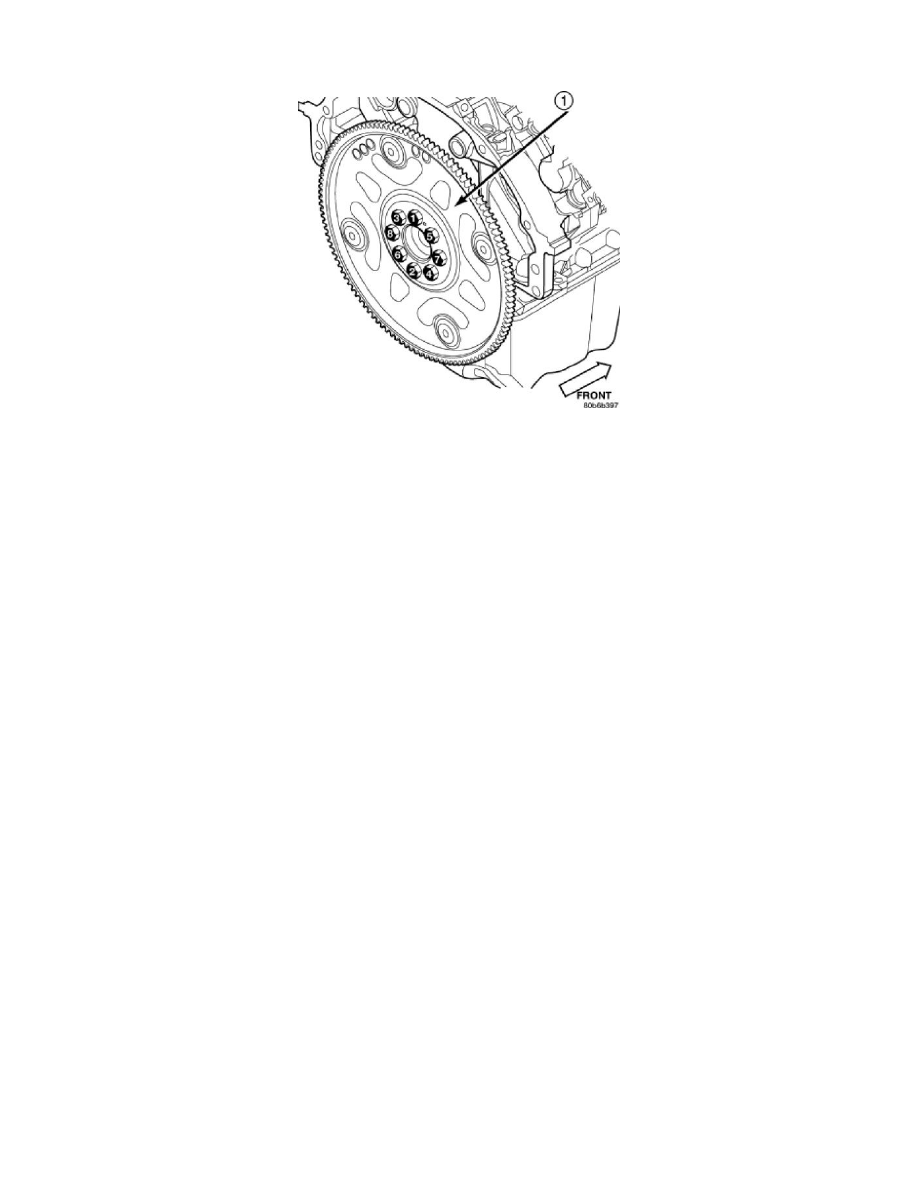

FLEX PLATE TORQUE AND SEQUENCE

1. Position the flexplate onto the crankshaft and install the bolts hand tight.
2. Tighten the flexplate retaining bolts to 60 Nm (45 ft. lbs.) in the sequence shown.
