Drive Belt: Diagrams
- Make
- Dodge
- Model
- Dakota 4WD
- Engine
- V8-4.7L VIN N
- Year
- 2000
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams · page 1 of 3

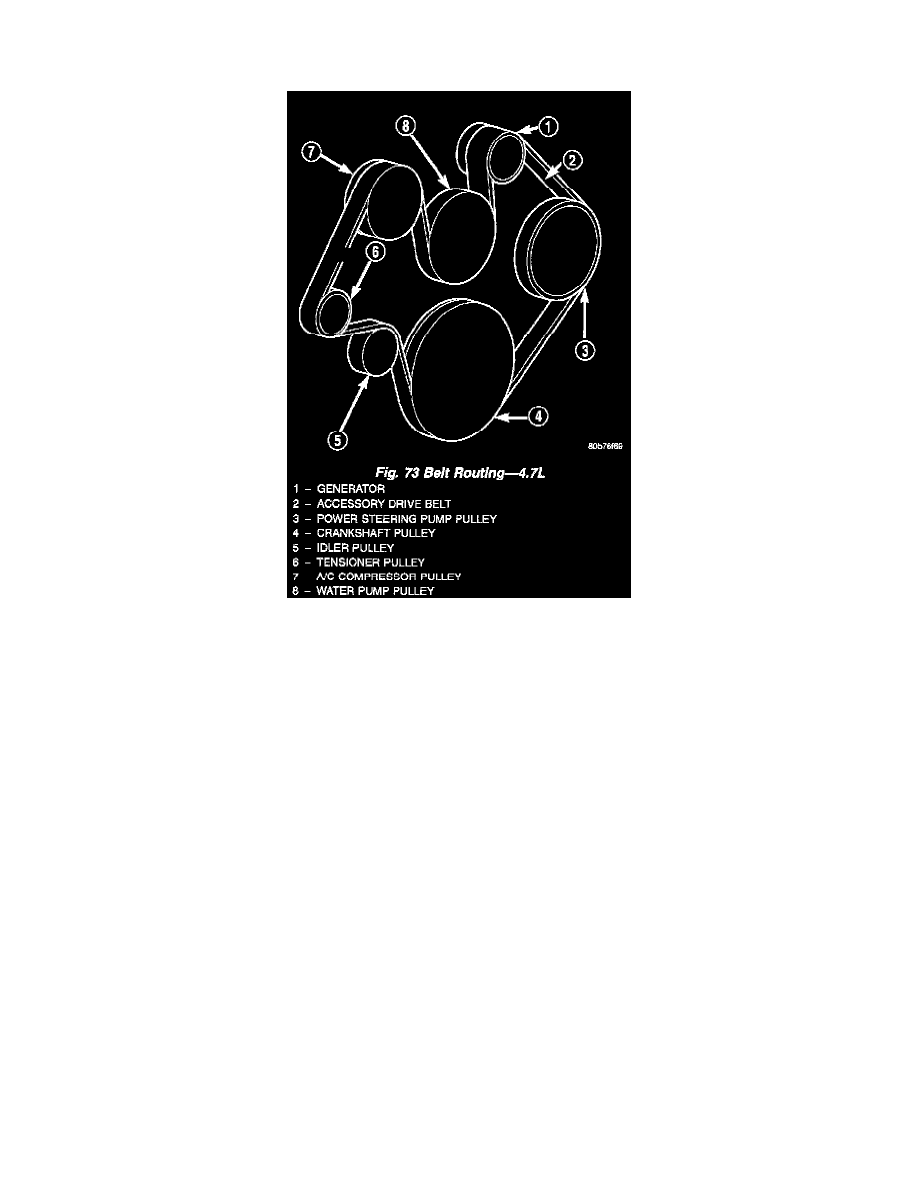

Drive Belt: Diagrams – diagram from the Maintenance chapter of the Dodge Dakota 4WD V8-4.7L VIN N (2000) factory manual.
Drive Belt: Diagrams
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
