Daytona L4-153 2.5L SOHC VIN B (1993)
Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan
Radiator Fan Relay <--> [Radiator Cooling Fan Motor Relay] / Diagrams / Diagram Information and Instructions
Page 1472
Page 1
Radiator Fan Relay: Electrical Diagrams

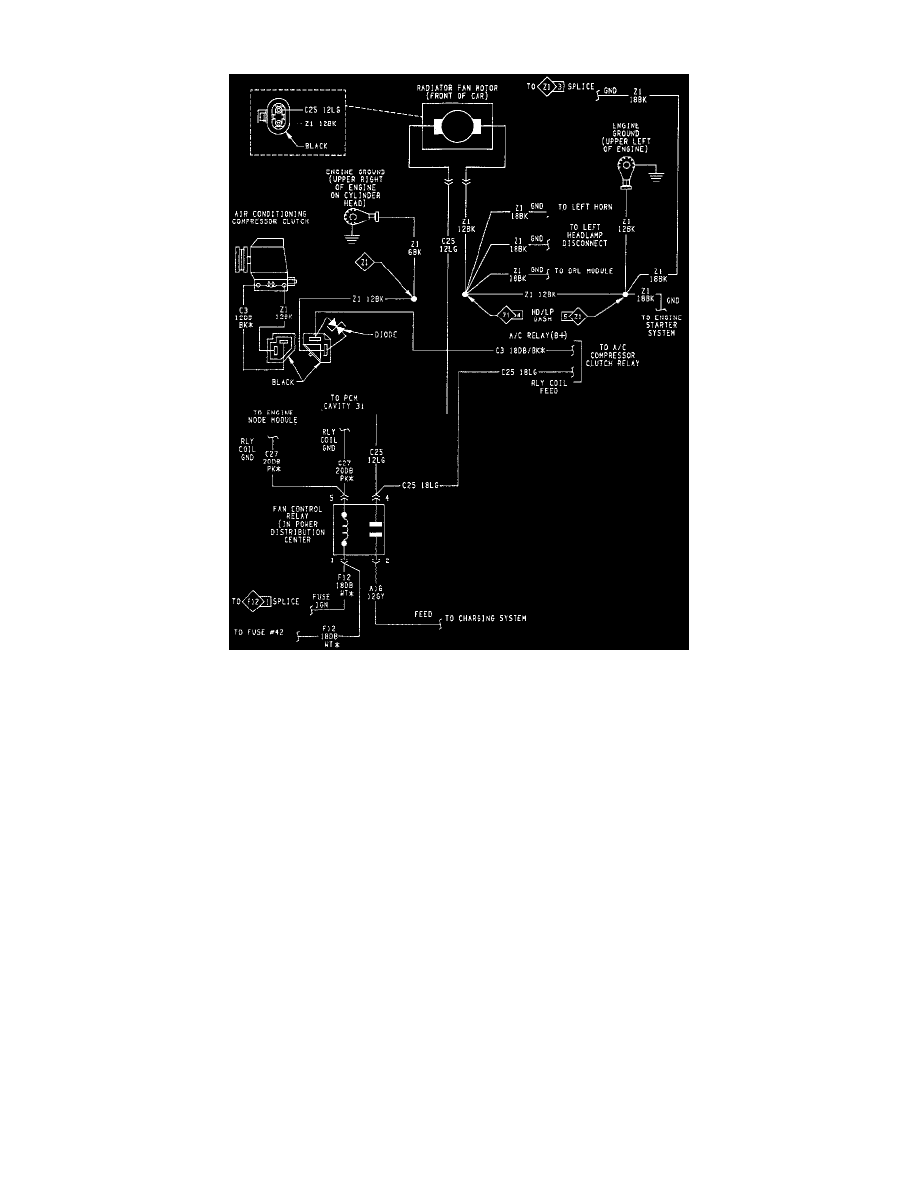

Fig. 5 - Engine Cooling Fan Wiring Diagram
