Daytona L4-153 2.5L SOHC VIN B (1993)
Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan

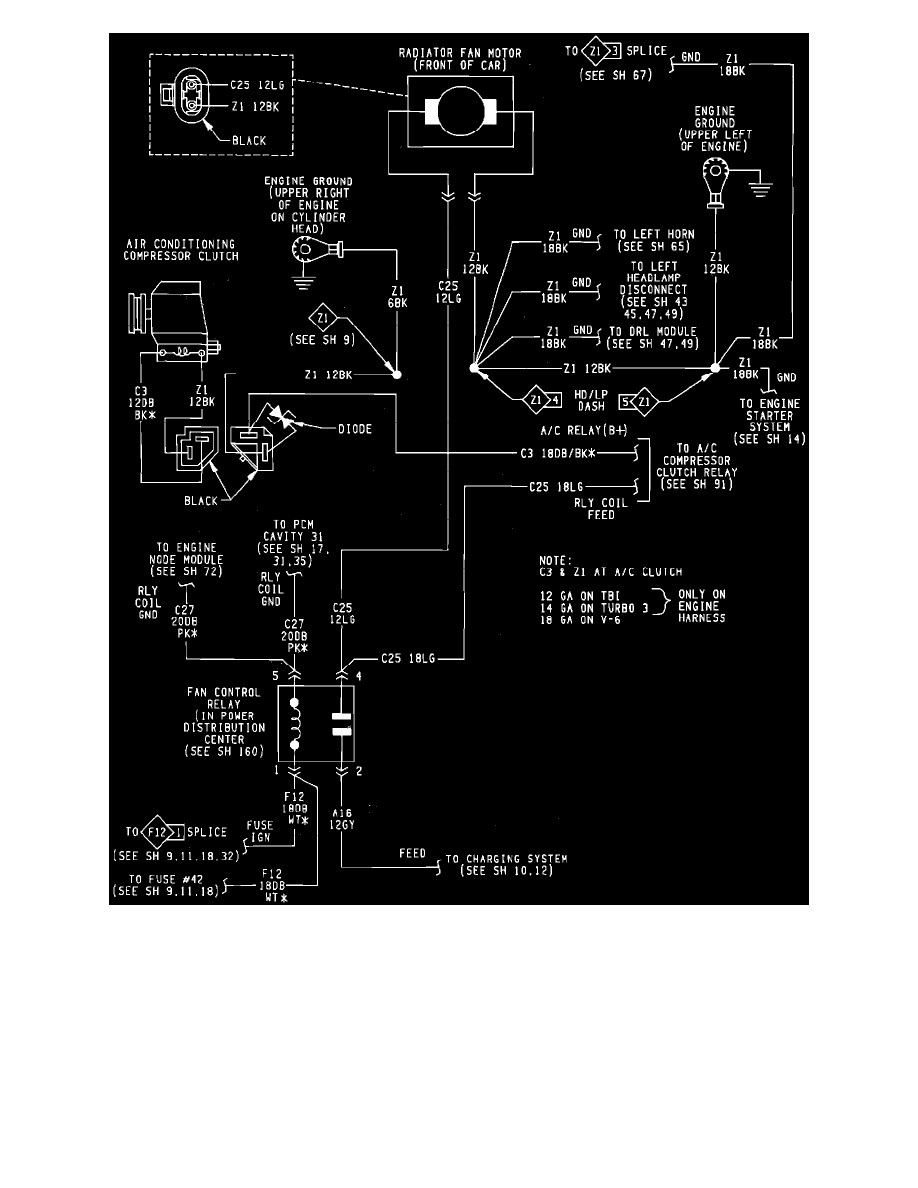

Radiator Fan Relay <--> [Radiator Cooling Fan Motor Relay] / Diagrams / Diagram Information and Instructions
Page 1473
Page 2
With A/C
Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan
Radiator Fan Relay <--> [Radiator Cooling Fan Motor Relay] / Diagrams / Diagram Information and Instructions
Page 1473
