Grand Caravan V6-3.3L VIN R (2005)

Page 27
background image

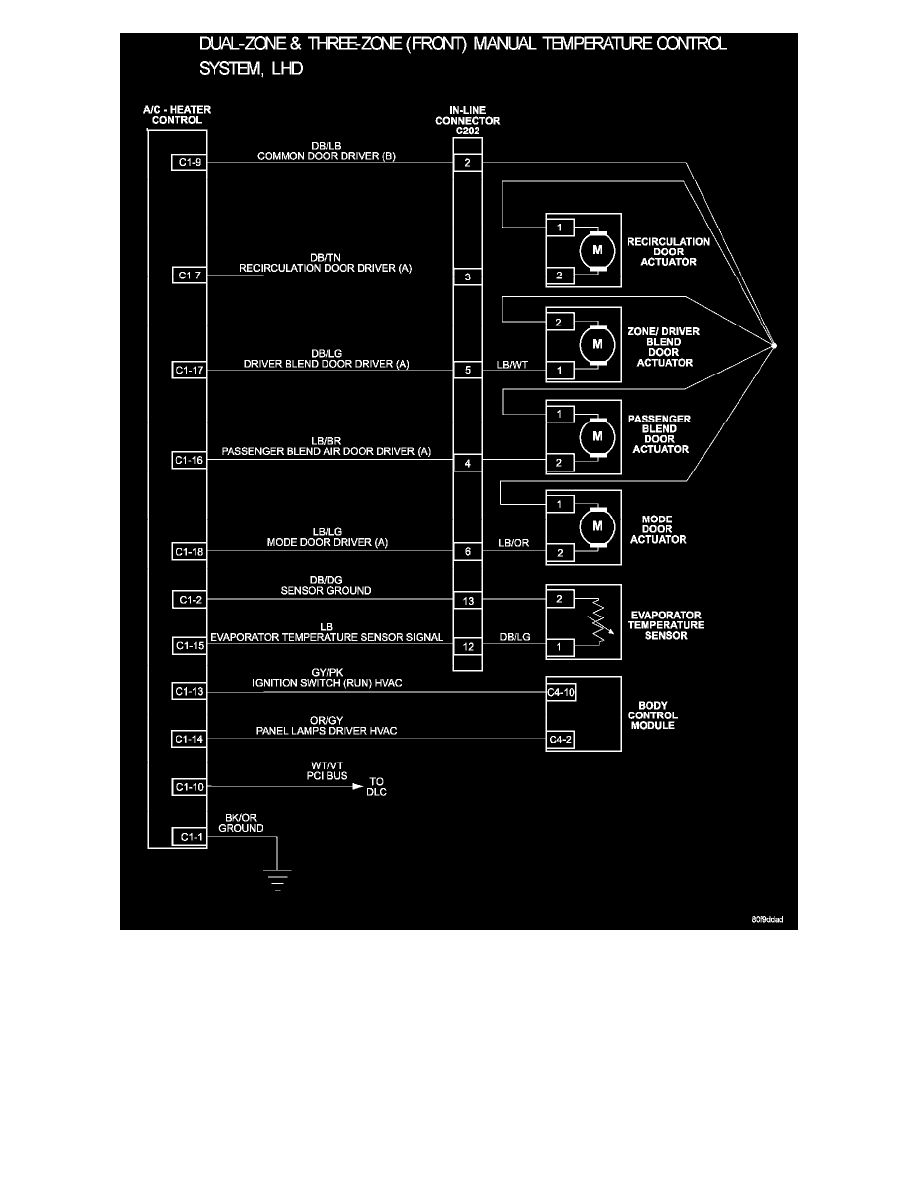

Dual-zone And Three Zone(front) Manual Temperature Control System, LHD
