Grand Caravan V6-3.3L VIN R (2005)

Page 28
background image

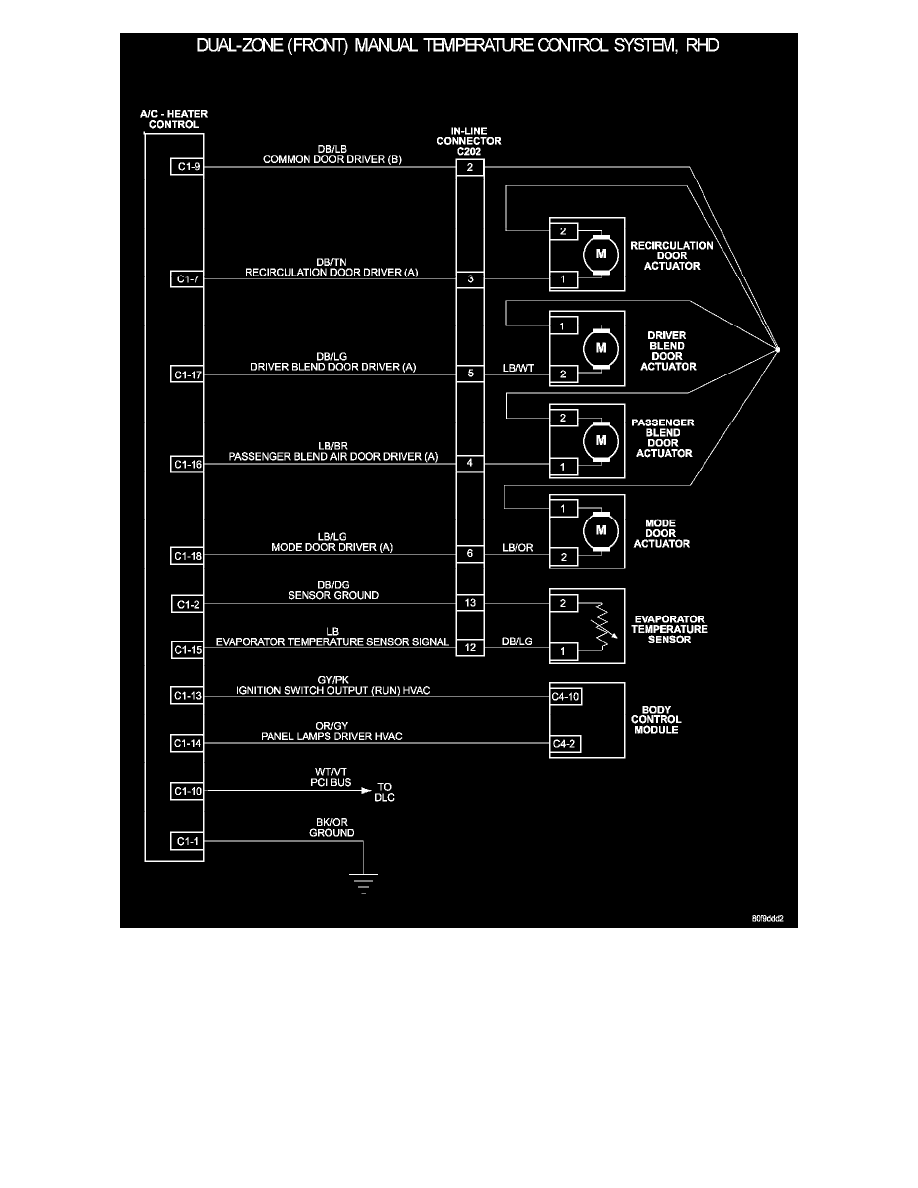

Dual-zone Zone(front) Manual Temperature Control System, RHD
