Blower Motor: Locations
- Make
- Dodge
- Model
- Magnum
- Engine
- V6-2.7L
- Year
- 2008
- Section
- Blower Motor › Locations
Heating and Air ConditioningLocations · page 1 of 3
Blower Motor: Locations
Component ID:
269
Component :

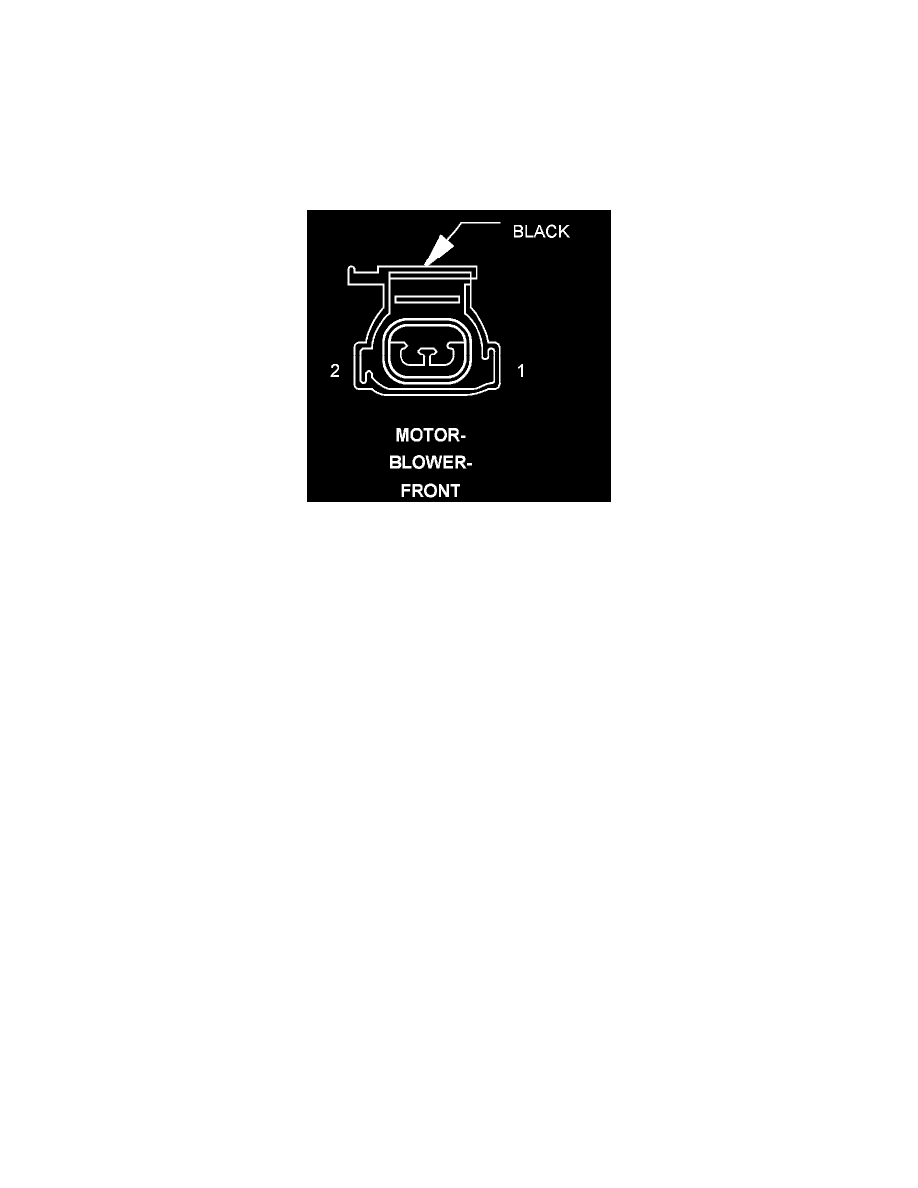

MOTOR-BLOWER-FRONT
Connector:
Name :
MOTOR-BLOWER-FRONT
Color :
BLACK
# of pins :
2
Pin
Circuit
Description
1
Z134 12BK/LG
PARK ASSIST DISPLAY GROUND
2
C7 12DB
BLOWER MOTOR SUPPLY
2
C7 12DB
FUSED RUN RELAY OUTPUT
Component Location - 33
