Vanity Lamp (Lamp-Vanity-Left): Locations

Make

Dodge

Model

Magnum

Engine

V6-2.7L

Year

2008

Section

Vanity Lamp › Locations › Lamp-Vanity-Left

Lighting and HornsLamp-Vanity-Left · page 1 of 4

Vanity Lamp: Locations
Lamp-Vanity-Left

Component ID:

227

Component :

LAMP-VANITY-LEFT

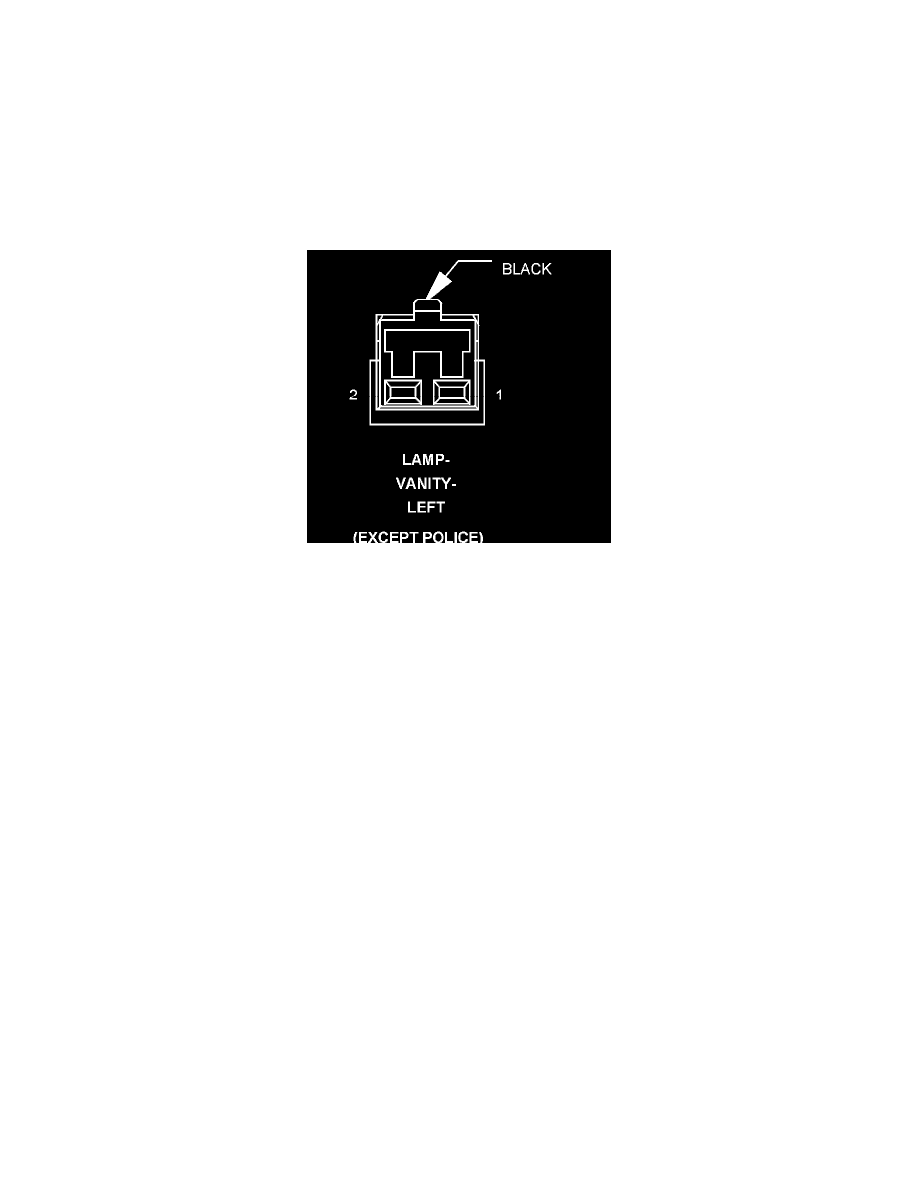

Connector:

Name :

LAMP-VANITY-LEFT

Color :

BLACK

# of pins :

2

Qualifier :

(EXCEPT POLICE)

Pin

Circuit

Description

  1

M27 20YL/LB

READING/RAIL LAMPS DRIVER

  2

Z909 20BK/LG

GROUND

Component Location - 68
