Magnum V6-2.7L VIN T (2007)

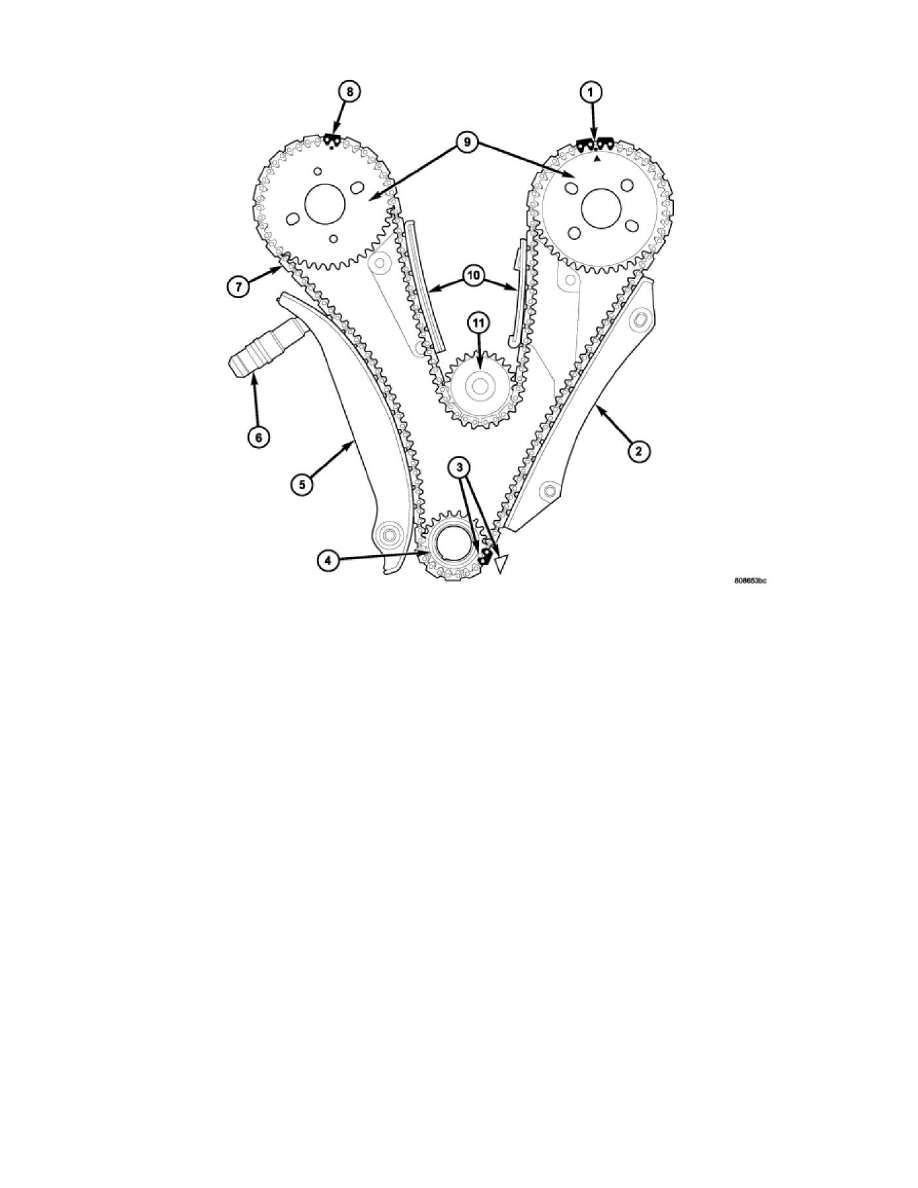

Timing Component Alignment Marks: Locations
1. Inspect all sprockets (4),(9),(11) and chain guides (2),(5),(10). Replace if worn.
2. For crankshaft sprocket installation procedures (Refer to Crankshaft Installation.
3. If removed, install right and left side short chain guides (11). Tighten attaching bolts to 28 Nm (250 in. lbs.).
4. Align crankshaft sprocket timing mark to the mark on oil pump housing(3).
NOTE: Lubricate timing chain and guides with engine oil before installation.
5. Place left side primary chain sprocket onto the chain so that the timing mark is located in between the two (plated) timing links (1).
