Magnum V6-3.5L VIN V (2006)
Timing Belt: Service and Repair
BELT-TIMING AND SPROCKETS
REMOVAL
TIMING BELT

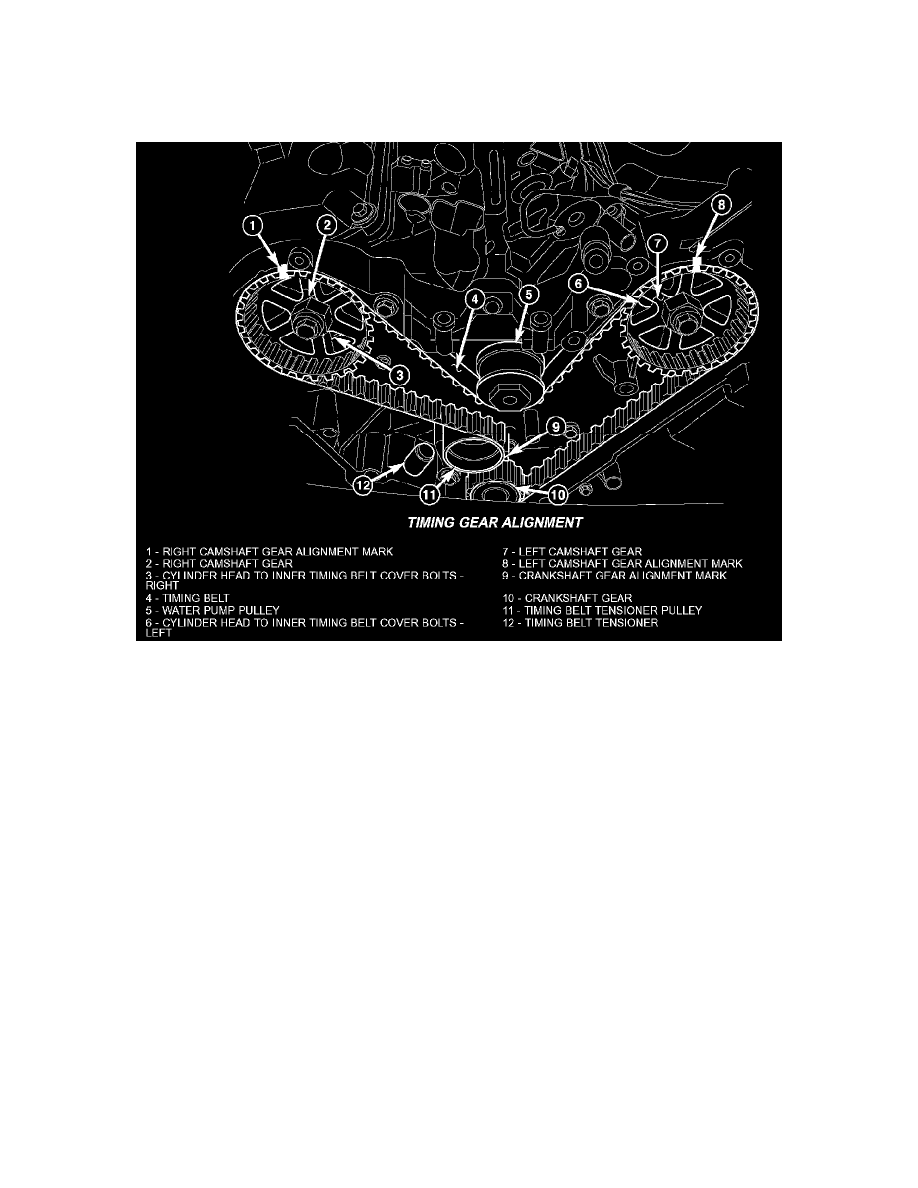

Timing Gear Alignment
CAUTION: The 3.5L is NOT a freewheeling engine. Therefore, loosen the valve train rocker assemblies before servicing the timing drive.
1. Perform fuel pressure release procedure..
2. Disconnect negative battery cable.
3. Remove both cylinder head covers and loosen the rocker arm assemblies.
4. Remove the front timing belt cover.
5. Mark belt running direction, if timing belt is to be reused.
CAUTION: When aligning timing marks, always rotate engine by turning the crankshaft. Failure to do so will result in valve and/or piston
damage.
6. Rotate engine clockwise until crankshaft (10) mark aligns with the TDC mark on oil pump housing (9) and the camshaft sprocket (2, 7) timing
marks (1, 8) are aligned with the marks on the rear cover.
7. Remove the timing belt tensioner (12) and remove timing belt.
8. Inspect the tensioner for fluid leakage.
9. Inspect the pivot and bolt for free movement, bearing grease leakage, and smooth rotation. If not rotating freely, replace the arm and pulley
assembly.
