Dodge Workshop Service and Repair Manuals > Magnum V8-5.7L (2008) > Powertrain Management | Ignition System | Ignition Coil | Component Information | Diagrams | Capacitor-Ignition 1 | Page 5186

Capacitor-Ignition 1|Page 5187 > < Capacitor-Ignition 1|Page 5185

Page 47

background image

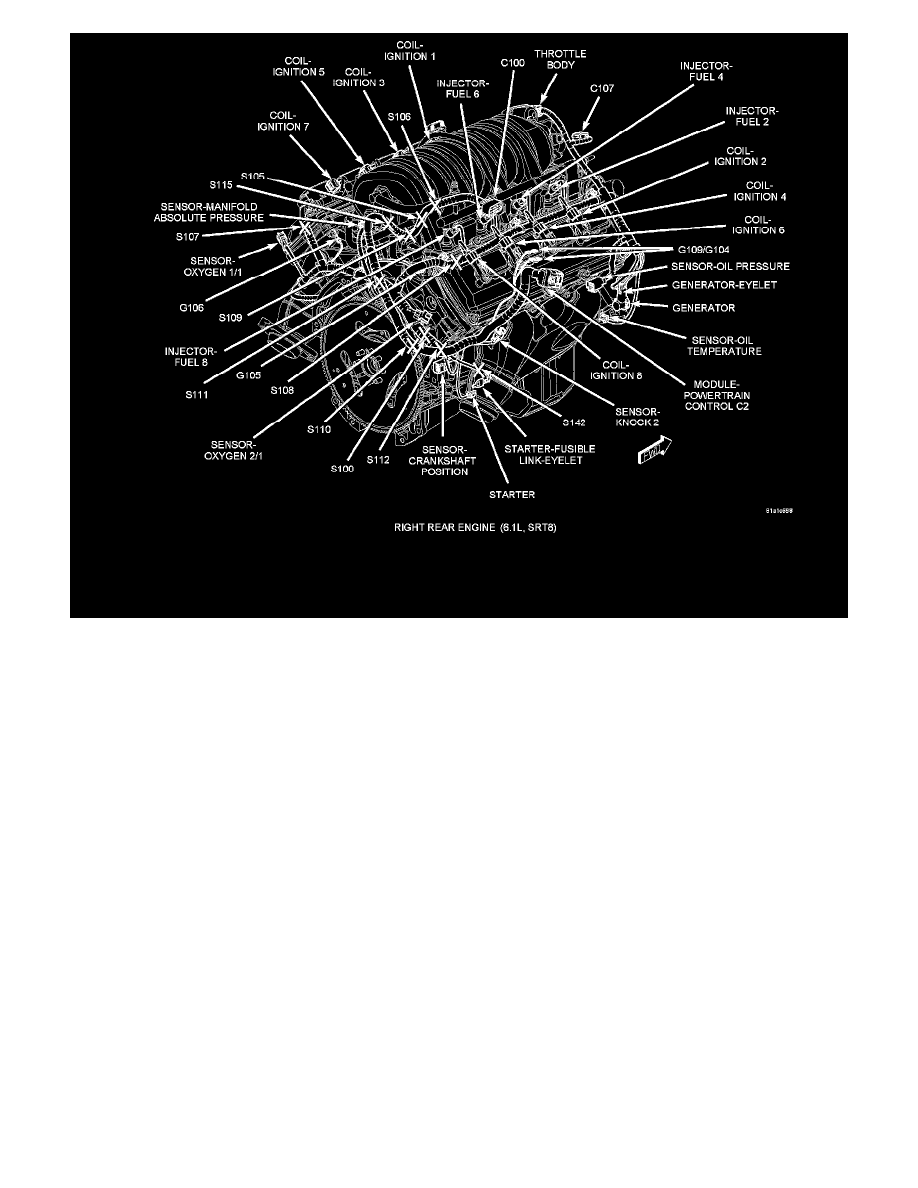

Component Location - 28

Powertrain Management
Ignition System
Ignition Coil / Component Information
Diagrams / Capacitor-Ignition 1
Page 5186

Capacitor-Ignition 1|Page 5187 > < Capacitor-Ignition 1|Page 5185
