Magnum V8-5.7L (2008)
Windshield Washer Pump: Locations
Component ID:
297

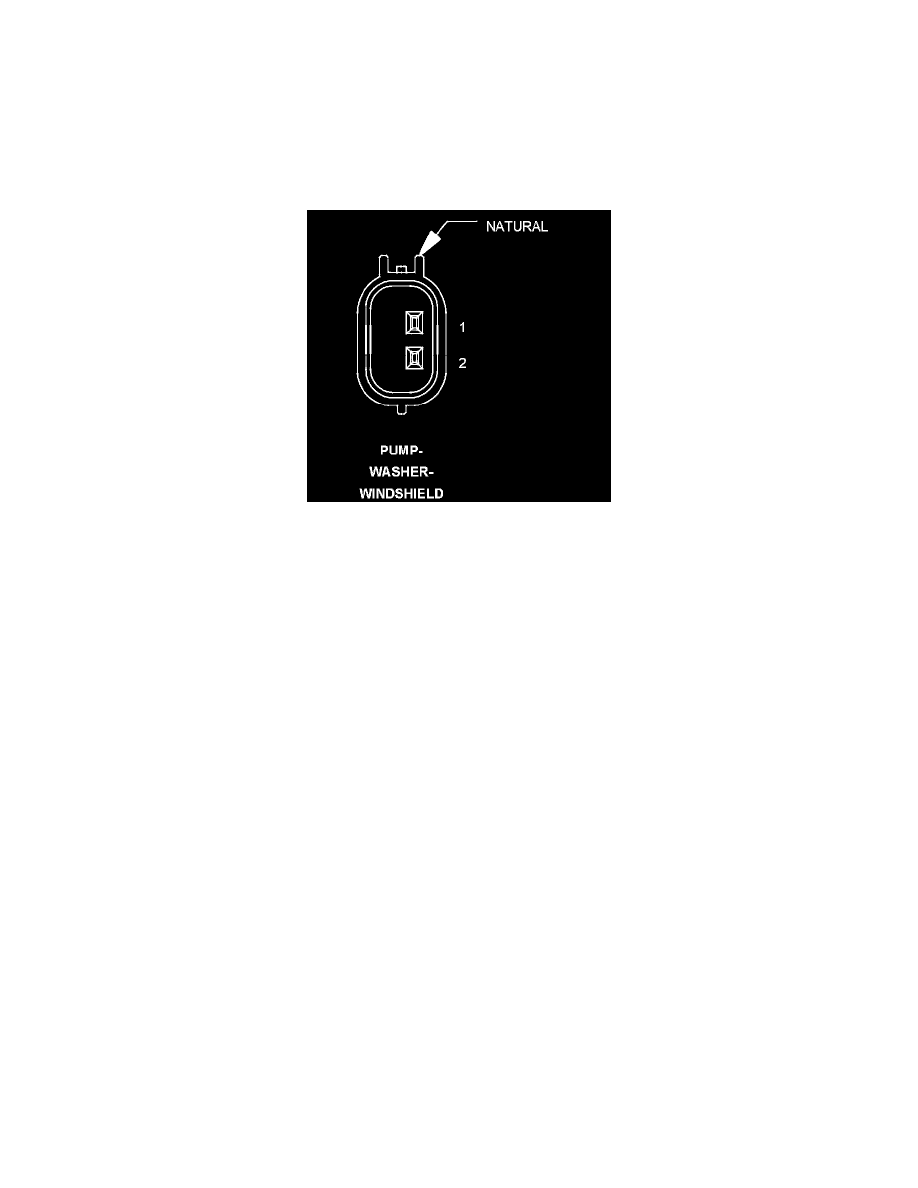

Component :
PUMP-WASHER-WINDSHIELD
Connector:
Name :
PUMP-WASHER-WINDSHIELD
Color :
NATURAL
# of pins :
2
Pin
Circuit
Description
1
W10 20BR
FRONT WASHER PUMP MOTOR CONTROL
2
W20 20BR/YL
REAR WASHER PUMP MOTOR CONTROL
2
Z904 20BK/BR
GROUND
Component Location - 2
