Removal and Replacement of HVAC Housing Assembly for Magnum V8-57L VIN 2 (2007)

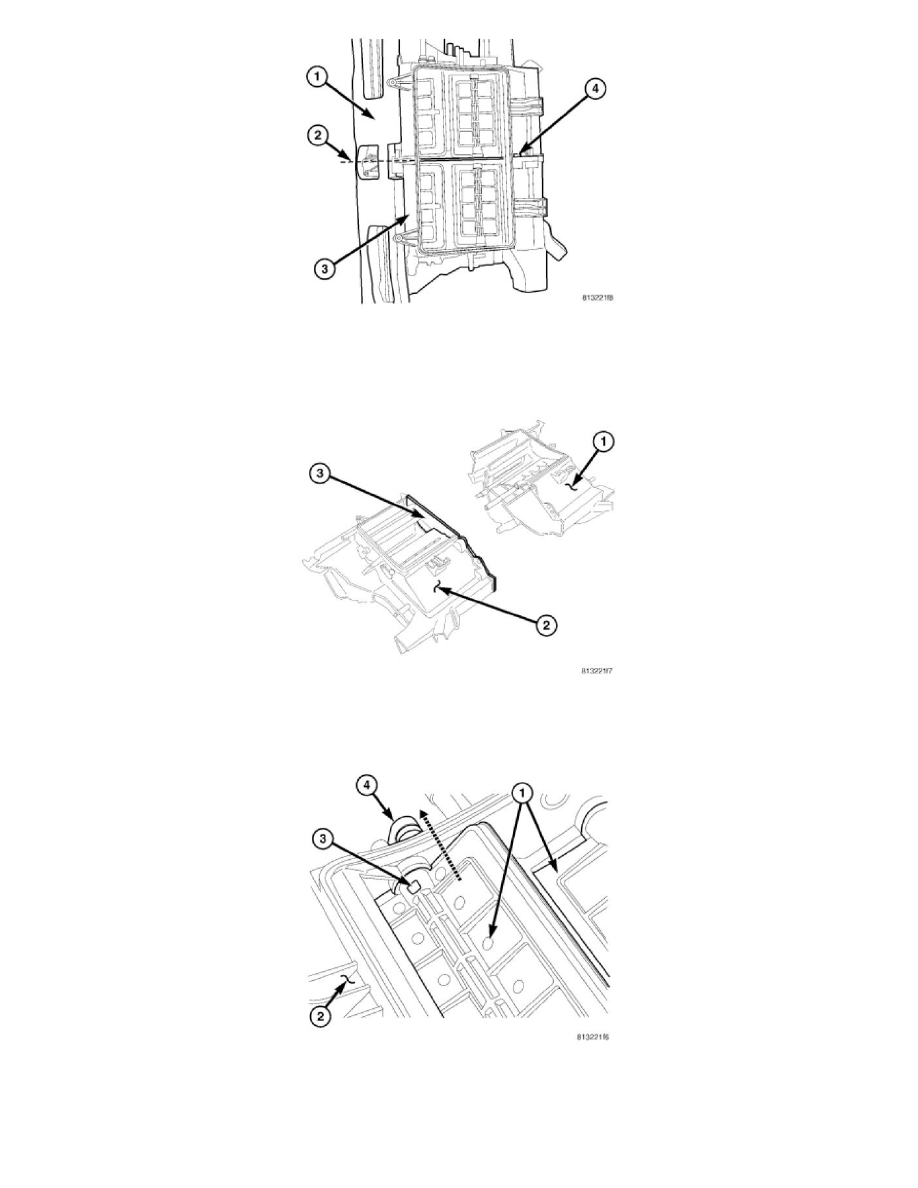

13. Carefully cut the foam seal (1) along the parting line (2) of the two halves of the air distribution housing (3). If the seal is deformed or damaged, it
must be replaced.
14. Remove the screws (4) that secure the two halves of the air distribution housing together.
15. Carefully separate the left half of the air distribution housing (1) from the right half of the housing (2).
16. Remove the center partition (3).
17. To remove the air doors (1) from the air distribution housing (2), first carefully push down on the tab (3) of the air door lever (4) located in the
pivot shaft of the air door being removed.
NOTE: If the seal on the air door is deformed or damaged, the air door must be replaced.
