RAM 1500 Truck 2WD V6-3.7L (2011)

  • Power and Ground Distribution
  • Fuse
  • Component Information
  • Locations

Page 1
background image

Fuse: Locations

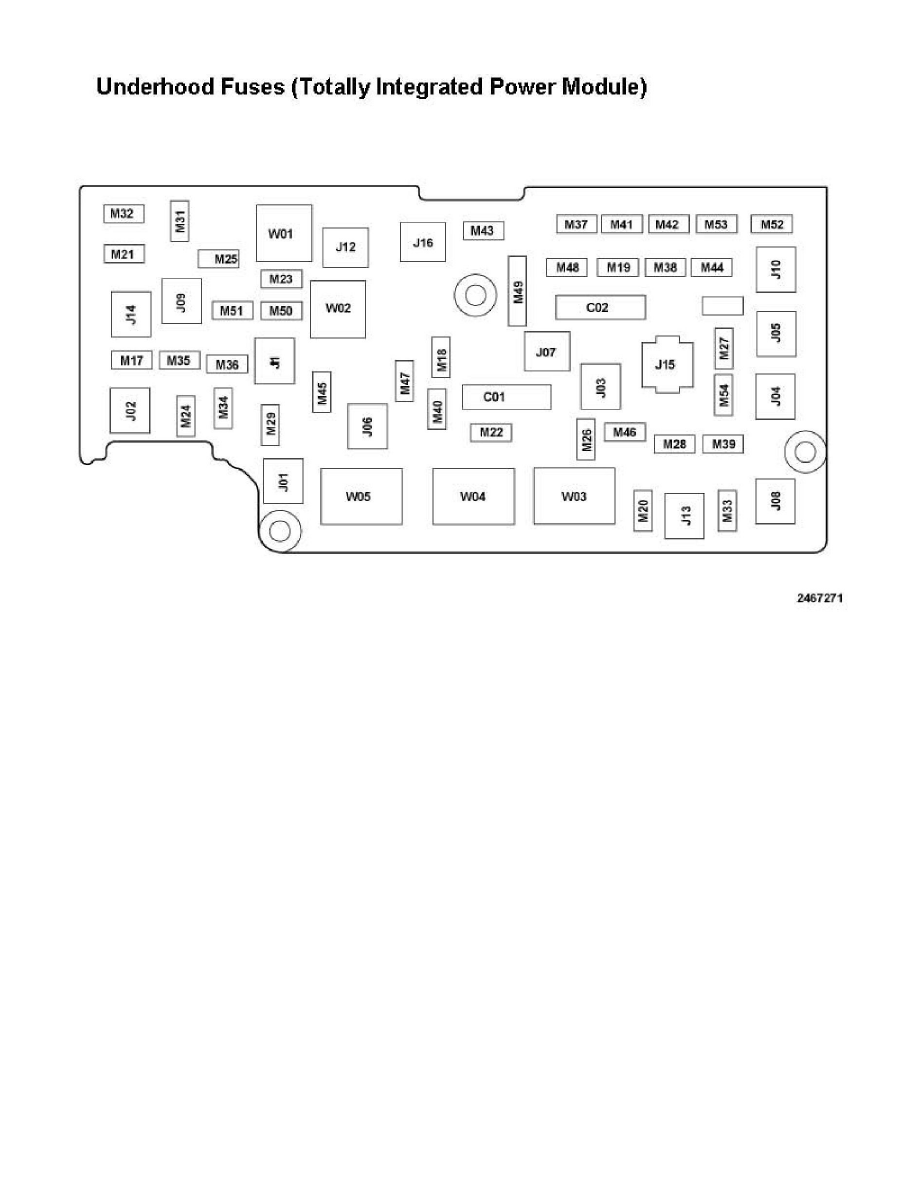

The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery. This center contains cartridge fuses and mini fuses.
A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover
that corresponds to the following chart
