RAM 1500 Truck 2WD V8-4.7L (2008)
Flex Plate: Specifications
INSTALLATION

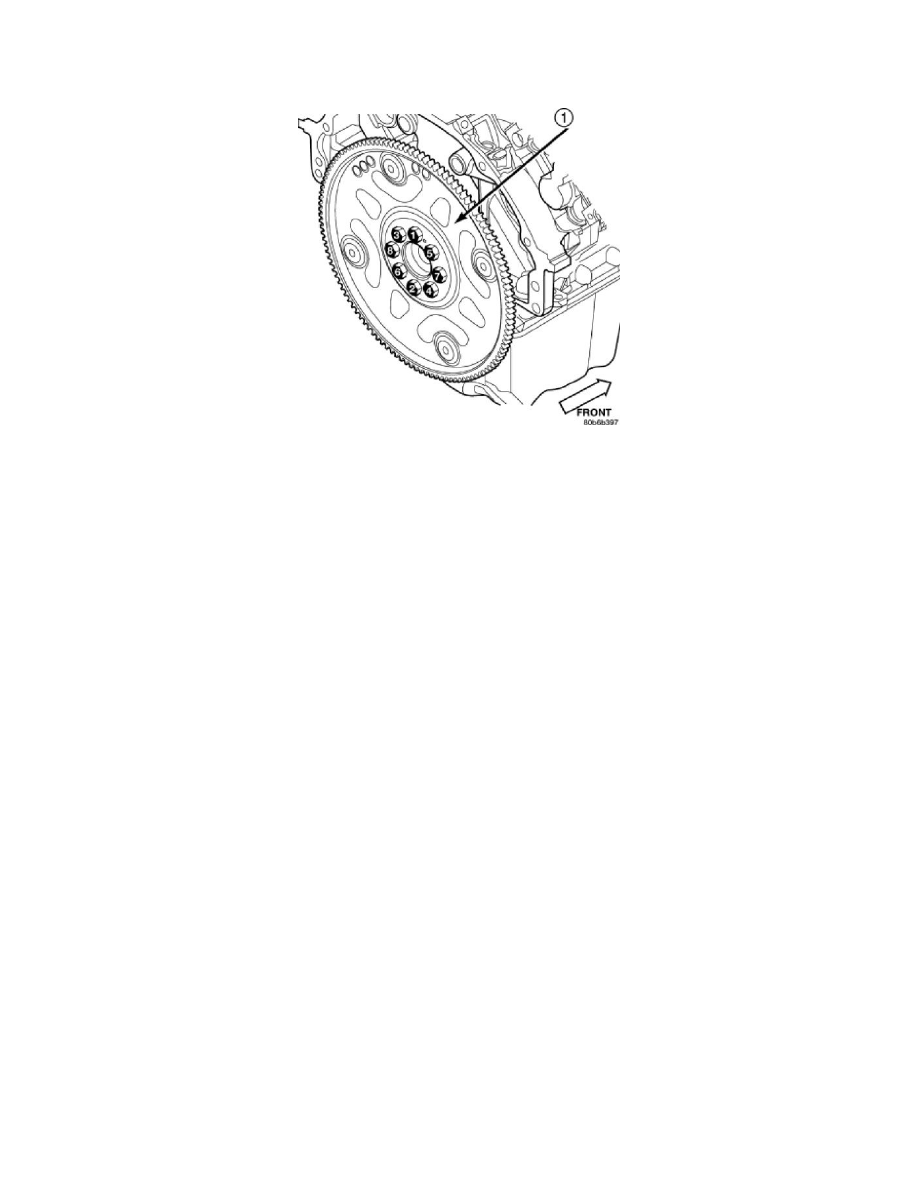

1. Position the flexplate onto the crankshaft and install the bolts hand tight.
2. Tighten the flexplate retaining bolts to 60 Nm (45 ft. lbs.) in the sequence shown.
3. Install the transmission. See: Automatic Transmission/Transaxle/Service and Repair/Removal and Replacement/545RFE Automatic
Transmission/Installation .
