Drive Belt: Diagrams
- Make
- Dodge
- Model
- RAM 2500 Truck 4WD
- Engine
- L6-6.7L DSL Turbo
- Year
- 2008
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams · page 1 of 6
Drive Belt: Diagrams

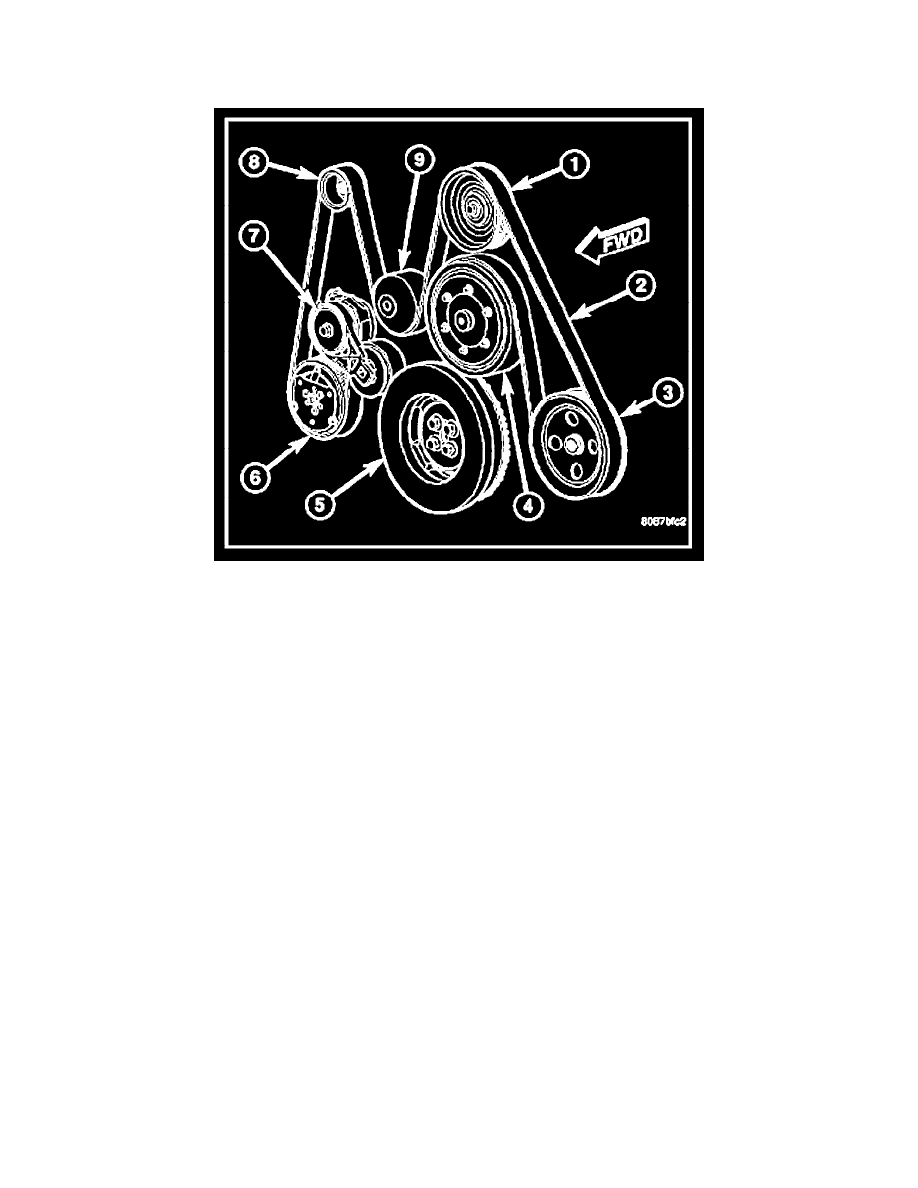

With A/C
1- Idler Pulley
2- Accessory Drive Belt
3- Power Steering Pulley
4- Radiator Fan Pulley
5- Crankshaft Pulley
6- A/C Compressor Pulley
7- Accessory Drive Belt Tensioner
8- Generator
9- Water Pump Pulley
Without A/C
