Drive Belt: Diagrams

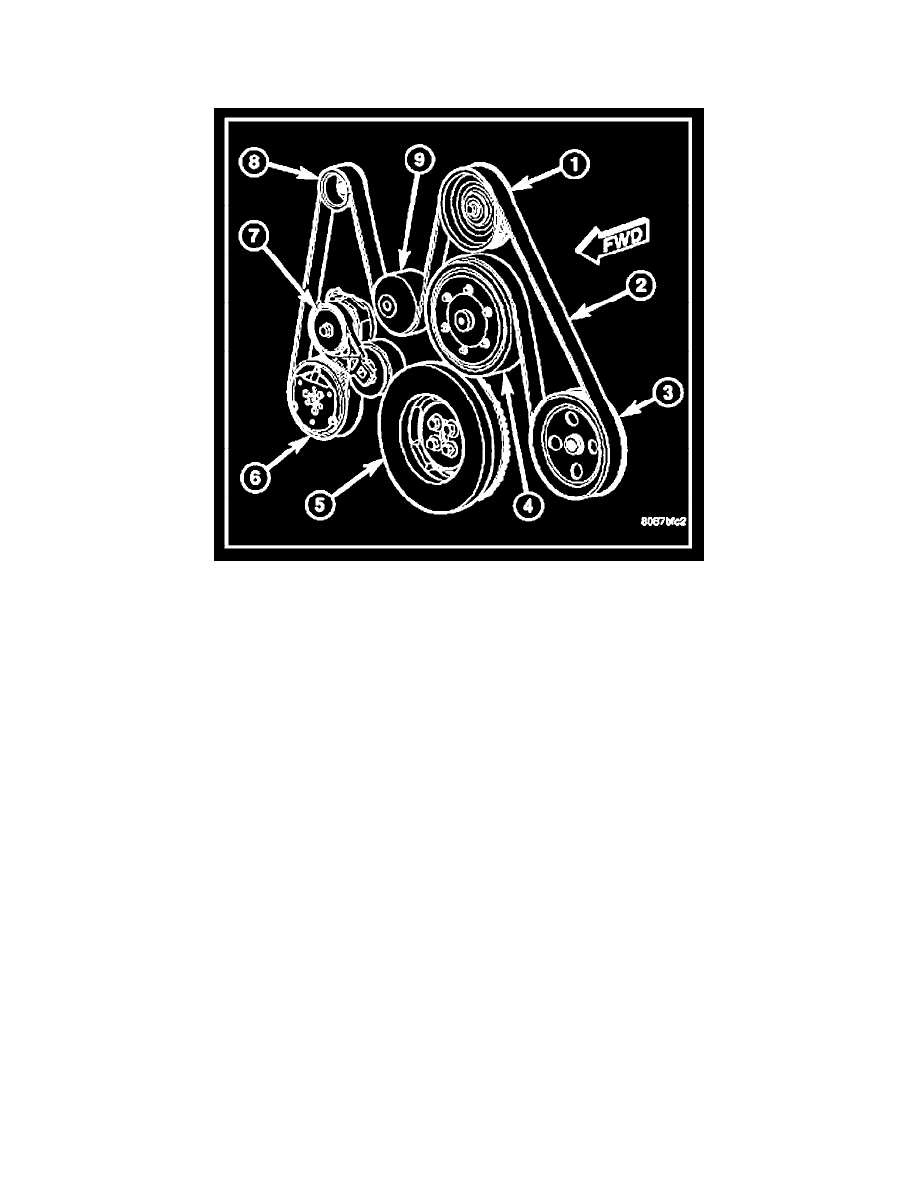

With A/C
1- Idler Pulley
2- Accessory Drive Belt
3- Power Steering Pulley
4- Radiator Fan Pulley
5- Crankshaft Pulley
6- A/C Compressor Pulley
7- Accessory Drive Belt Tensioner
8- Generator
9- Water Pump Pulley
Without A/C
