Sprinter 2500 V6-30L DSL Turbo (2008): Alignment Specifications
Alignment: Specifications
WHEEL ALIGNMENT, CURB HEIGHT, AND TORQUE SPECIFICATIONS
NOTE: Before each alignment check the front and rear curb heights of the vehicle. Verify that it is between minimum and maximum values
given.

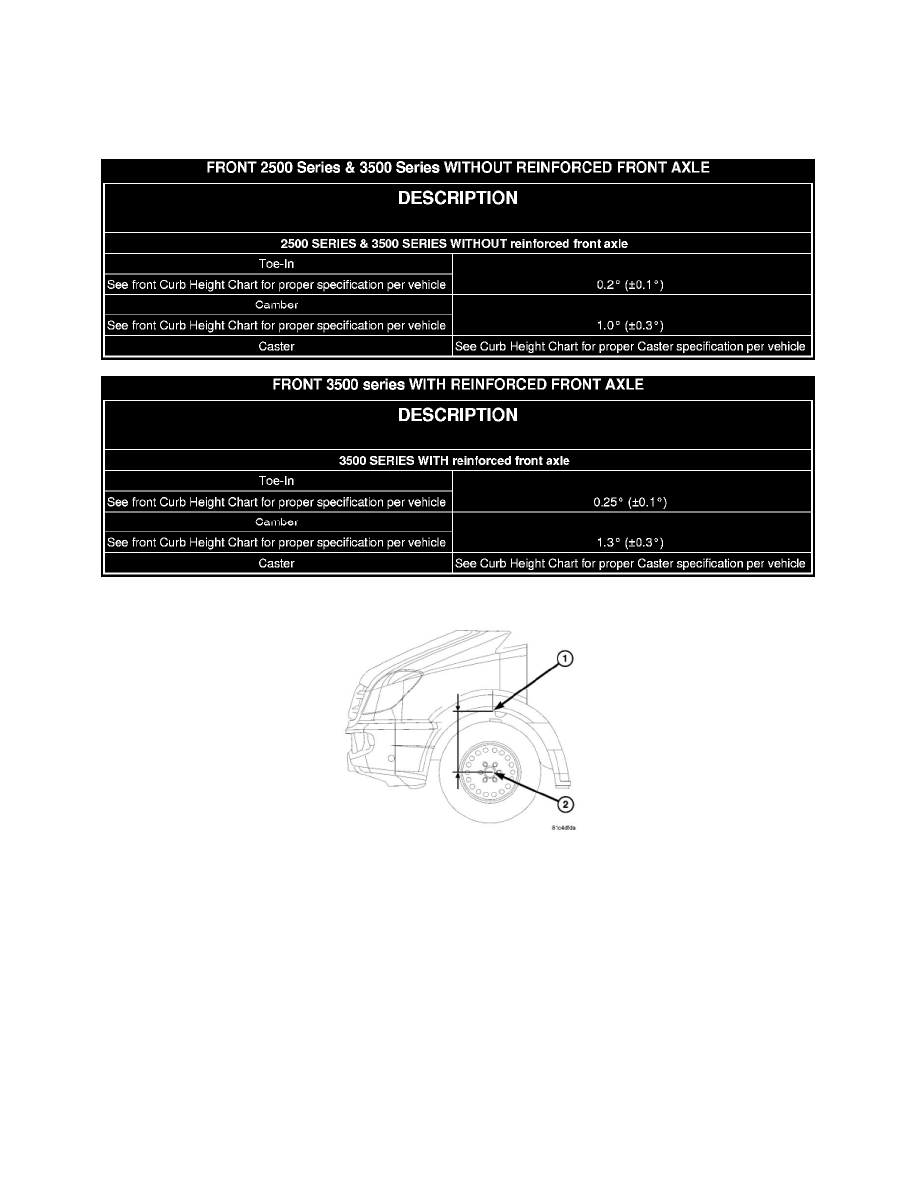

FRONT AND REAR CURB HEIGHT SPECIFICATIONS
NOTE: Before each alignment check, measure the distance between the wheel center (2) and wheel well housing (1) on either side of the vehicle.
Verify that it is between minimum and maximum values given. (This is the requirement for toe-in, camber and caster). Adjusting the rear curb
height is not necessary when measuring it and choosing a spec from the table accordingly.
To check front curb height measure the distance between the wheel center (2) and the wheel well housing (1) which should be between the given
specifications.
