Timing Belt: Specifications
- Make
- Dodge
- Model
- SRT-4
- Engine
- L4-2.4L Turbo VIN S
- Year
- 2004
- Section
- Timing Belt › Specifications
MaintenanceSpecifications · page 1 of 8
Timing Belt: Specifications
Timing Belt Interval

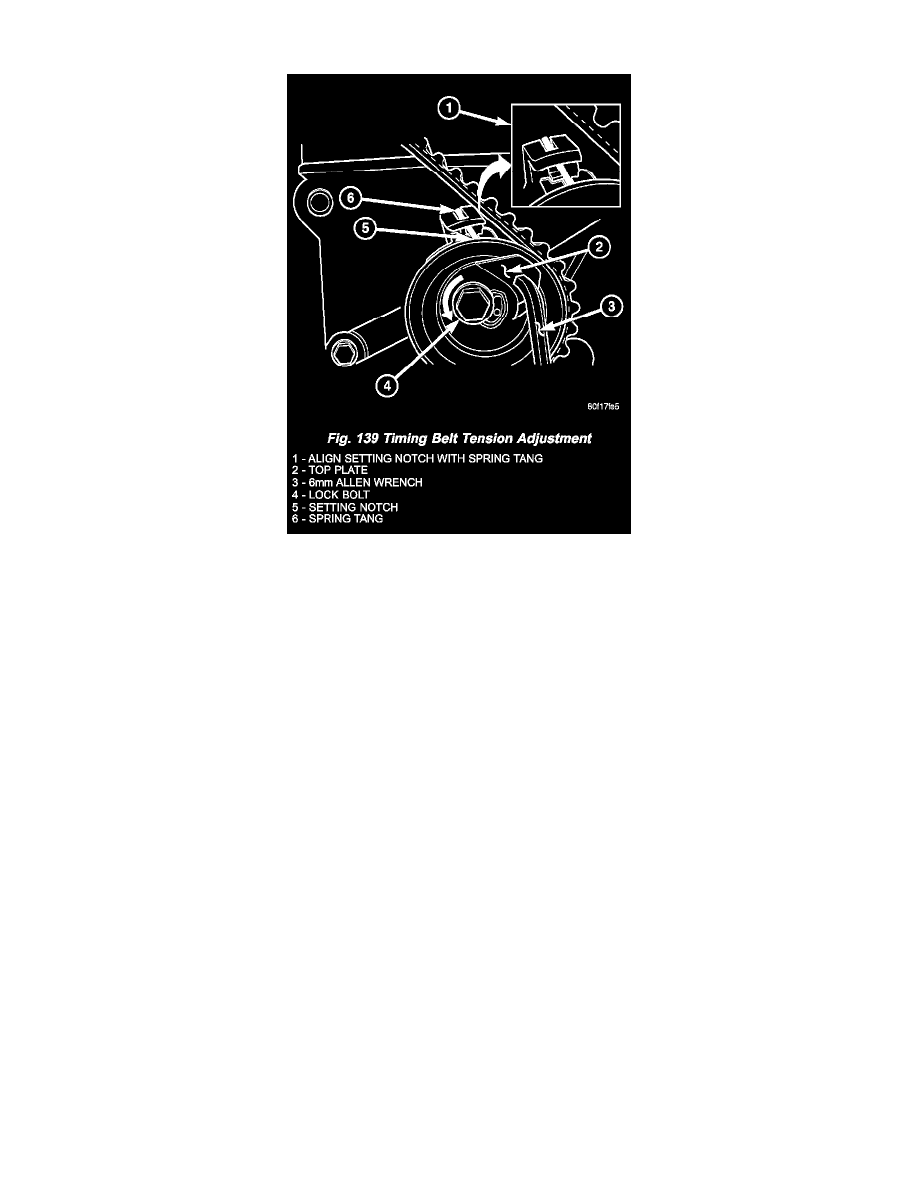

Using the alien wrench to prevent the top plate from moving, torque the tensioner lock bolt to 25 Nm (220 inch lbs.). Setting notch and spring
tang should remain aligned after lock bolt is torqued.
