Firewall: Diagrams

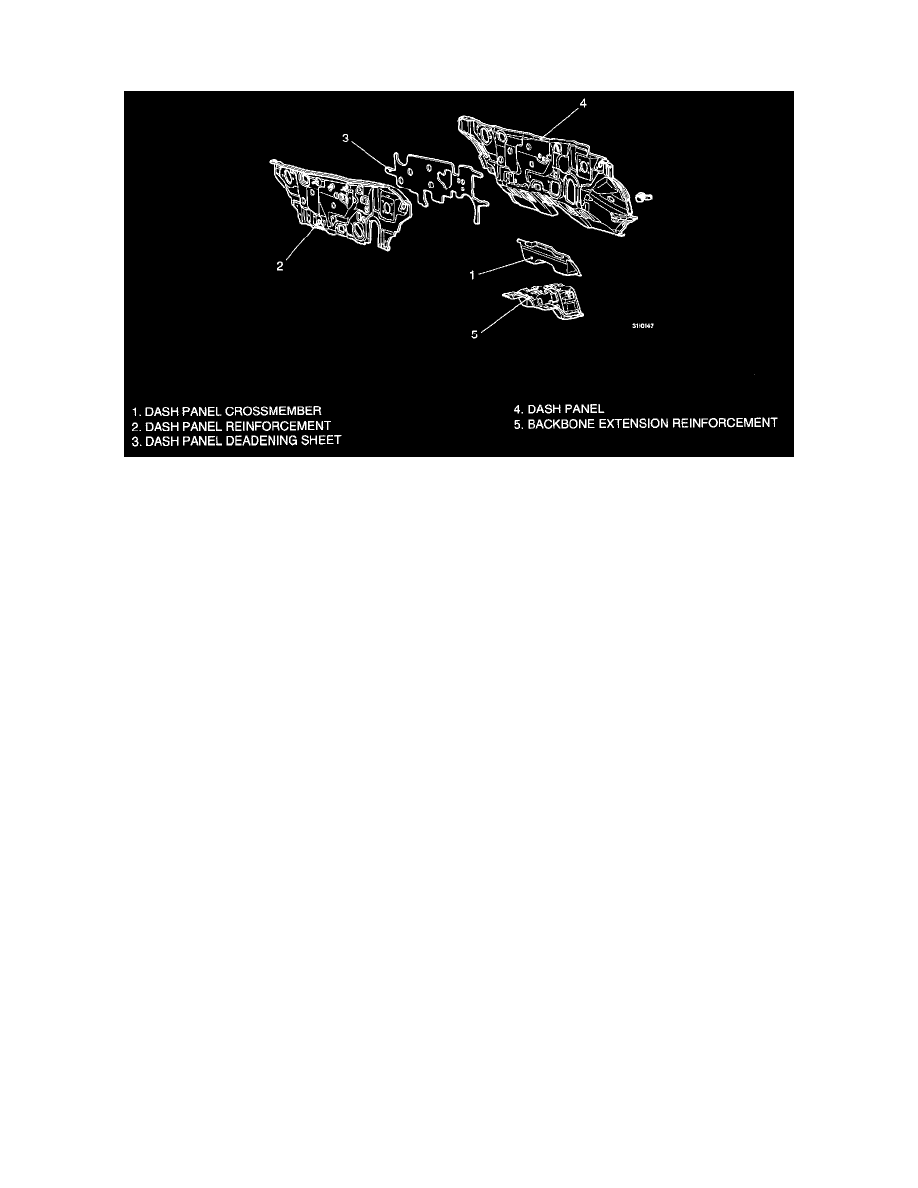

DASH PANEL
A deadening sheet (foam rubber sheet) has been placed in between the dash panel and the dash panel reinforcement to create a double-walled structure
which improves sound insulation.
