Body and FrameService and Repair
Seats: Service and Repair

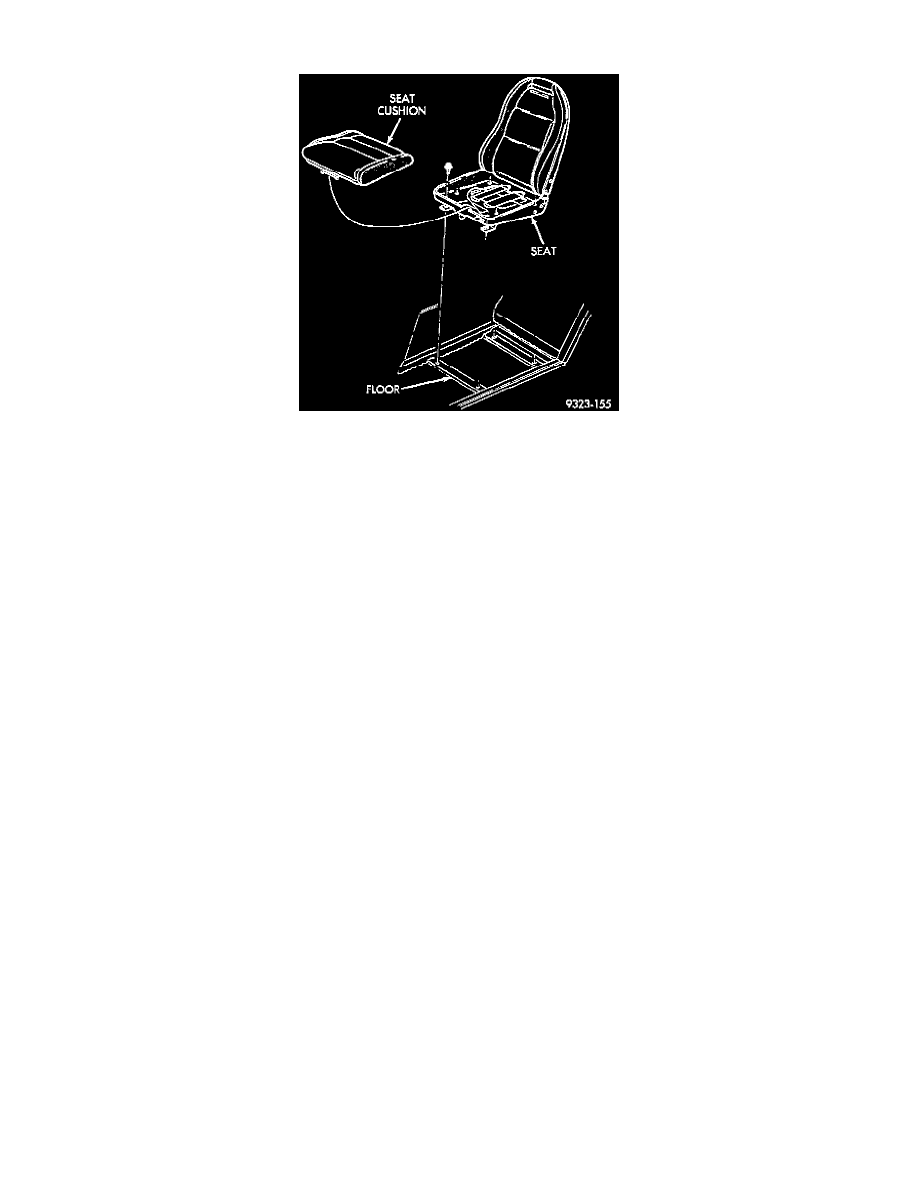

Seat
SEAT CUSHION REMOVAL
1. Move seat to rear position.
2. Disengage spring clip under front edge of seat cushion pan.
3. Pull front of seat cushion upward and separate cushion from vehicle.
4. Reverse the preceding operation for installation.
SEAT REMOVAL
1. Set seat position to one notch forward of full rear.
2. Remove seat cushion.
3. Remove bolts holding seat track to floor through access holes in seat cushion pan.
4. Lift seat upward and out of vehicle.
5. Reverse the preceding operation for installation.
