Condenser HVAC: Locations

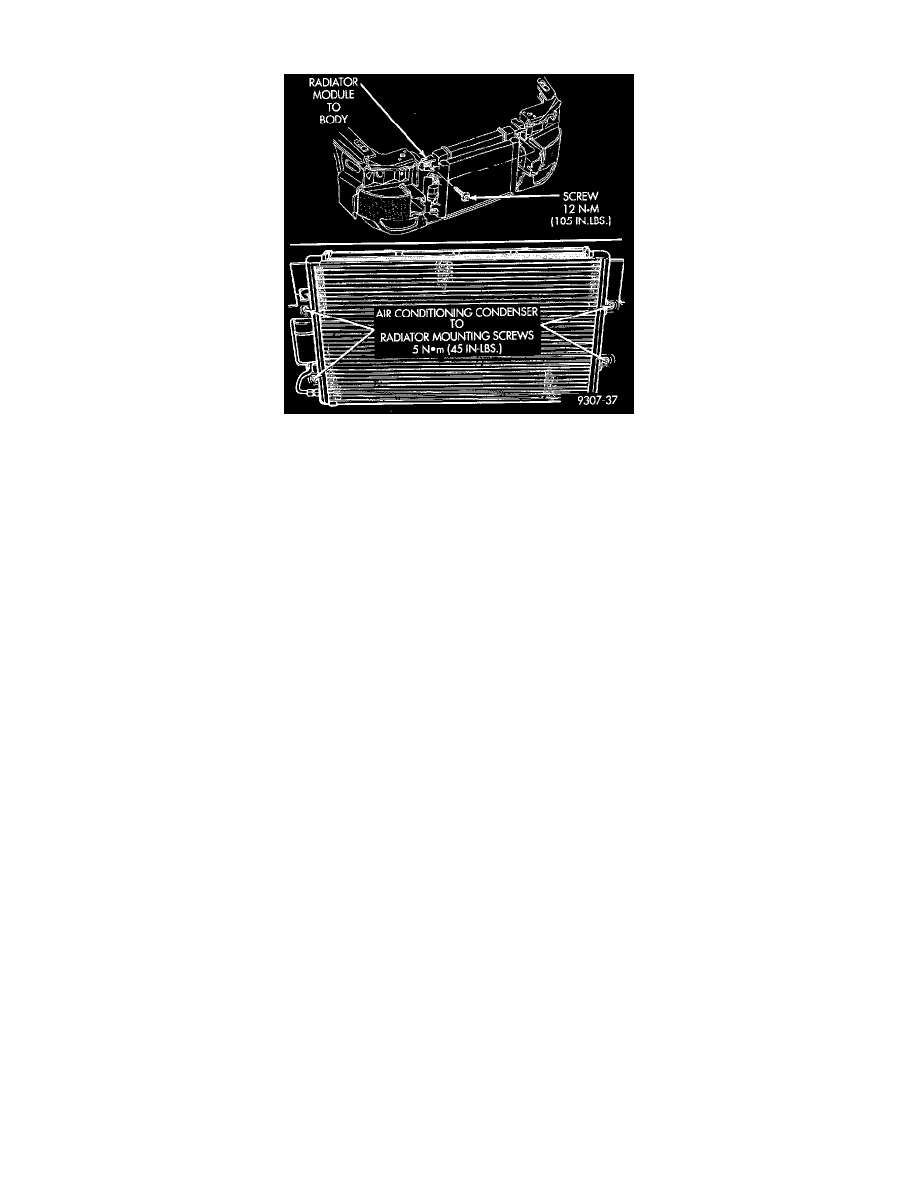

A/C Condenser

The A/C condenser is located in front of the engine cooling radiator.
