Reassembly of front brakes

This is the reverse procedure to dismantling. Ensure that the pull-off springs are correctly fitted to the holes in the webs of the brake shoes and that the shoes register correctly in the slotted ends of the pistons and the side mounting plate.

Upon assembly of the hub and brake drum assembly liberally pack the space between the two bearings with Fiat MR grease, and remount the hub according to the instructions in Chapter 8.

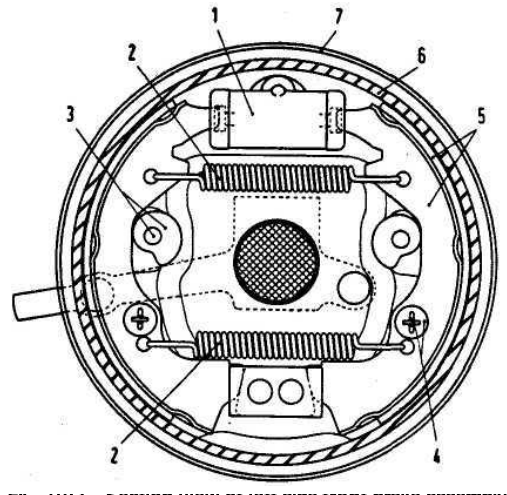

Section view of left side front brake assembly (500 Station Wagon)
FIG 10:3 Section view of left side front brake assembly (500 Station Wagon)
Key to Fig 10:3
1Wheel cylinder
2Shoe return spring
3Adjusting cams
4Shoe guide pin
5Shoe with lining
6Drum
7Housing flange

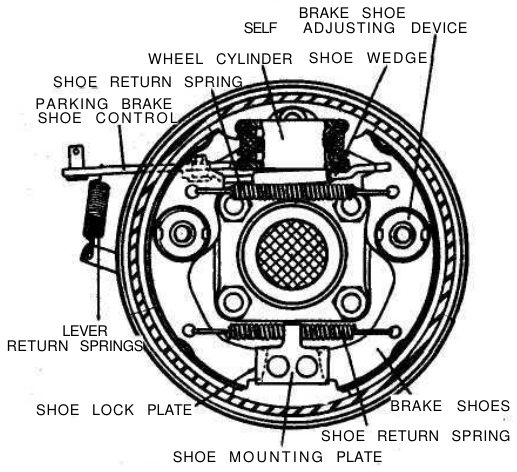

Right rear wheel brake assembly (500 Sedan)
FIG 10:4 Right rear wheel brake assembly (500 Sedan)
