Wiring diagram: Giardiniera (station wagon)

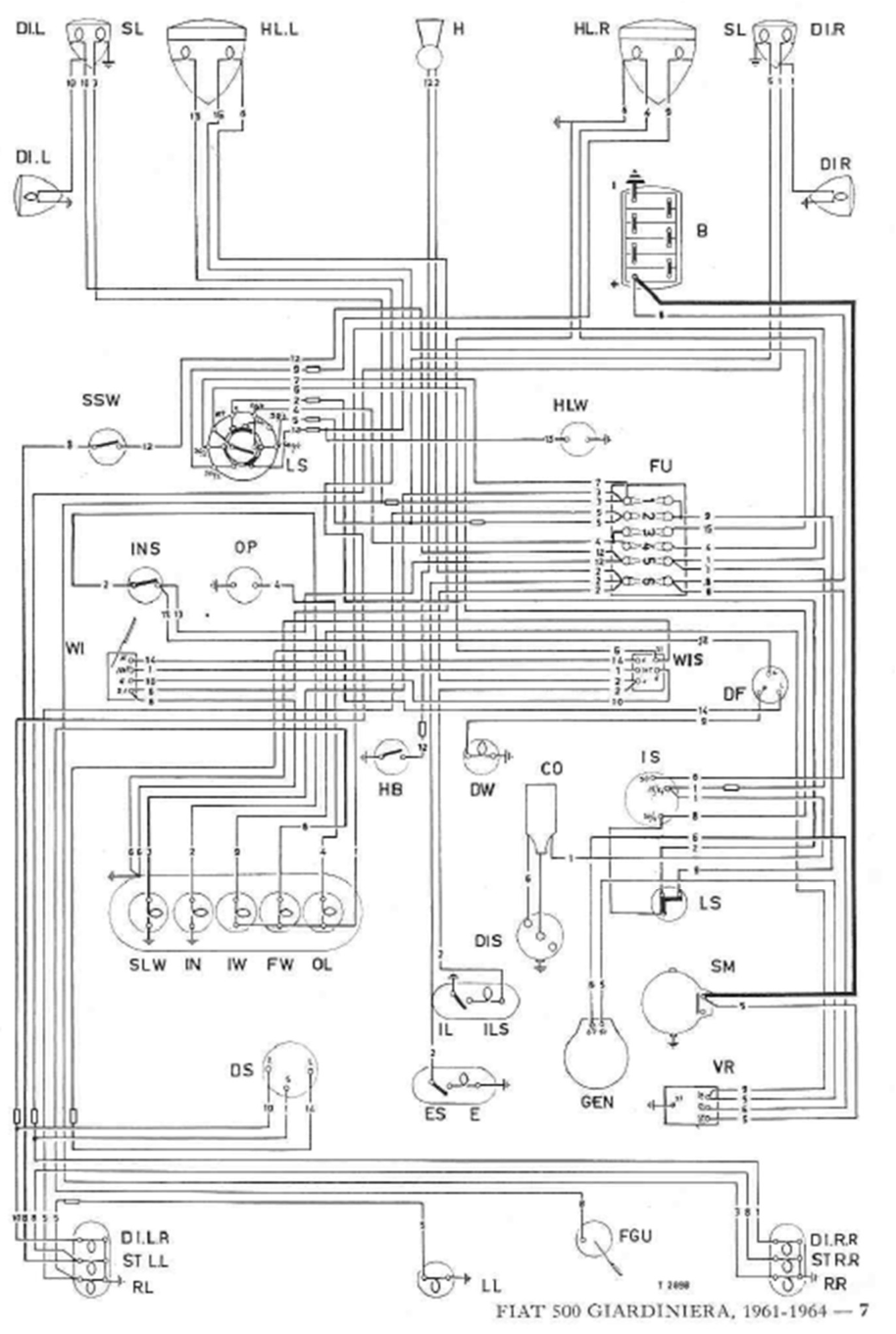

Electrical wiring diagram for the Fiat Giardiniera. The numbers on the diagram refer to the key below.

Abbreviations

B	Battery
CO	Coil
DF	Turn signal unit
DL L	Turn signal left front
DL LR	Turn signal left rear
DL R	Turn signal right front
DL RR	Turn signal right rear
DIS	Ignition cap
DS	Turn signal switch
DW	Turn signal indicator light
E	Rear interior light
ES	Rear interior light switch
FGU	Fuel indicator switch
FU	Fuse box
FW	Fuel level indicator light
GEN	Dynamo
H	Horn
HB	Horn push button
HL L	Headlight left
HL R	Headlight right
HLW	High beam indicator light
IL	Interieur light
ILS	Interieur light switch
IN	Dashboard light
INS	Dashboard light switch
IS	Ignition lock
IW	Charger indicator light
LL	Licence plate light
LS	Exterior light switch
OL	Oil pressure indicator light
OP	Oil pressure switch
R.L	Rear light left
R.R	Rear light right
SL	Front parking light
SLW	Exterior light indicator light
SM	Starter motor
SSW	Brake light switch
STL.L	Brake light left
STL.R	Brake light right
VR	Voltage regulator
WI	Wiper motor
WIS	Wiper motor switch

Wire colour code

1	Blue
2	White
3	Yellow
4	Grey
5	Brown
6	Black
7	Pink
8	Red
9	Green
10	Blue-Black
12	Yellow-black
13	Green-Black
14	White-Black
15	Grey-Black
