J17 Diesel preheating relay

Make

Fiat

Model

Multipla Factory Service Manual

Year

1998–2010

Section

Relays › J17 Diesel preheating relay

Connectors and pin-outsJ17 Diesel preheating relay

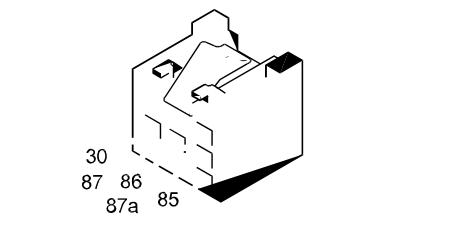

J17 Diesel preheating relay

J017 – Front

1.9 JTD 8V · Euro 3

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
30	2,5	R	X	B039
				J020	86
87	2,5	VB		O020B
86		VN	X	B041
				D004	4
				M015C	3
85		MB		D004	17

1.9 JTD 8V

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Diameter	Colour	Node	Connect.	Pin
30	1,5	R		B039
87	1,5	VB		O020B	B
86		HL		D001B	13
85		MB		O020A	2
