Operation 5505C40 · Vehicle compartment wiring

For precise identification of the electrical connections, see Wiring Diagrams Section.

Removing

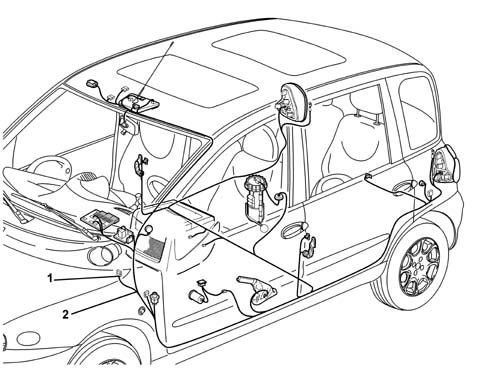

1. Disconnect the electrical connections and retainers for the passenger compartment integrated wiring.

2. Remove the passenger compartment integrated wiring.

Refitting

Check that the passenger compartment integrated wiring is not damaged and that the individual conductors are firmly attached to the connections.

Check that the connections are fitted with the anti-slip devices (secondary lock).

If necessary, check the continuity.

Reposition the passenger compartment integrated wiring.

Connect the electrical connections and the retainers for the passenger compartment integrated wiring.
