Wiring diagrams and electrical functionsCONNECT - Wiring diagram
CONNECT - Wiring diagram

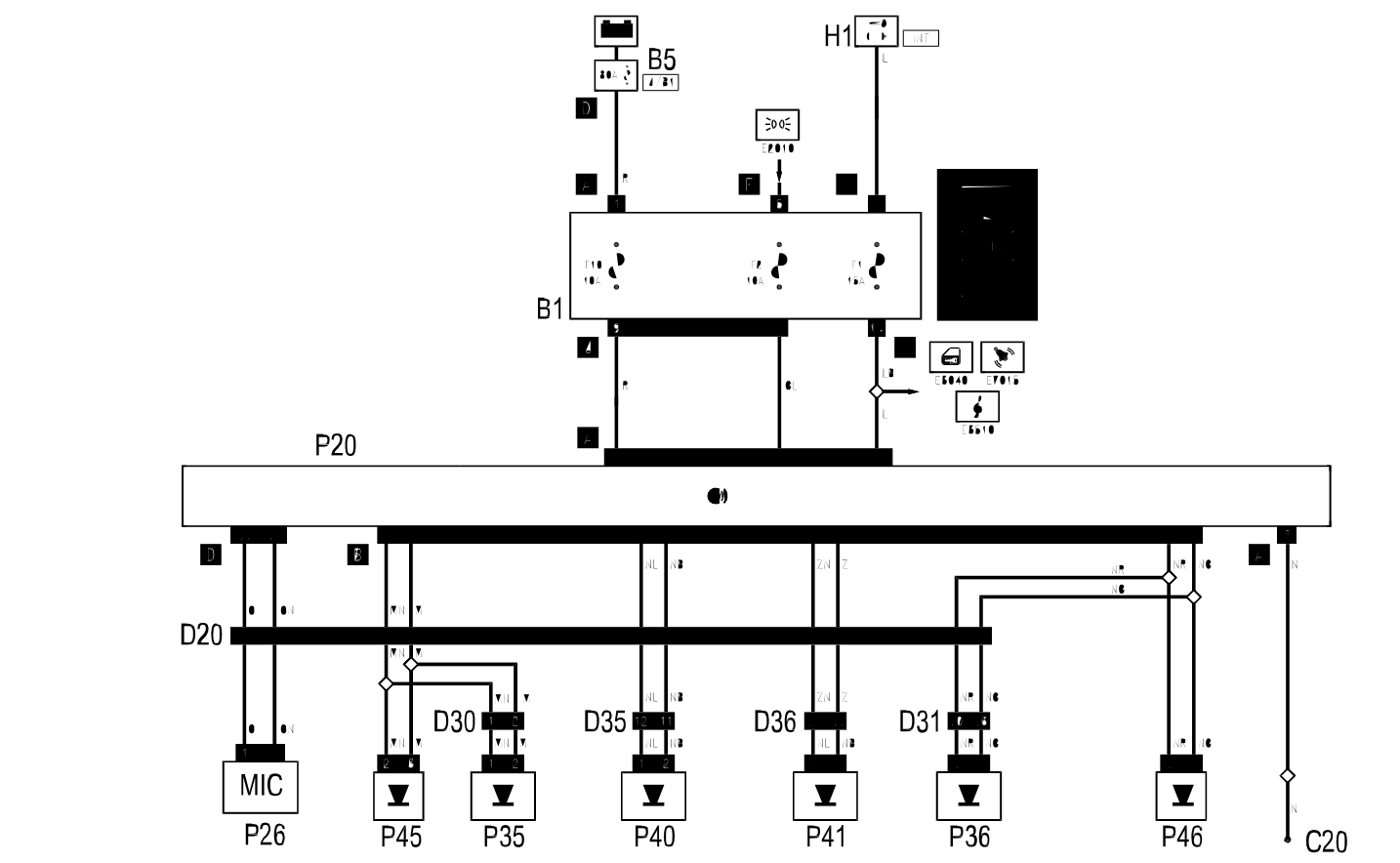

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B26 | Fuse power supply ignition operated excl ignition (INT/A) | |
| C20 | Passenger side dashboard earth | |
| P20 | Car radio | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P20 | Car radio | |
| P20 | Car radio | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P26 | Hands-free 'microphone' | |
| P26 | Hands-free 'microphone' |

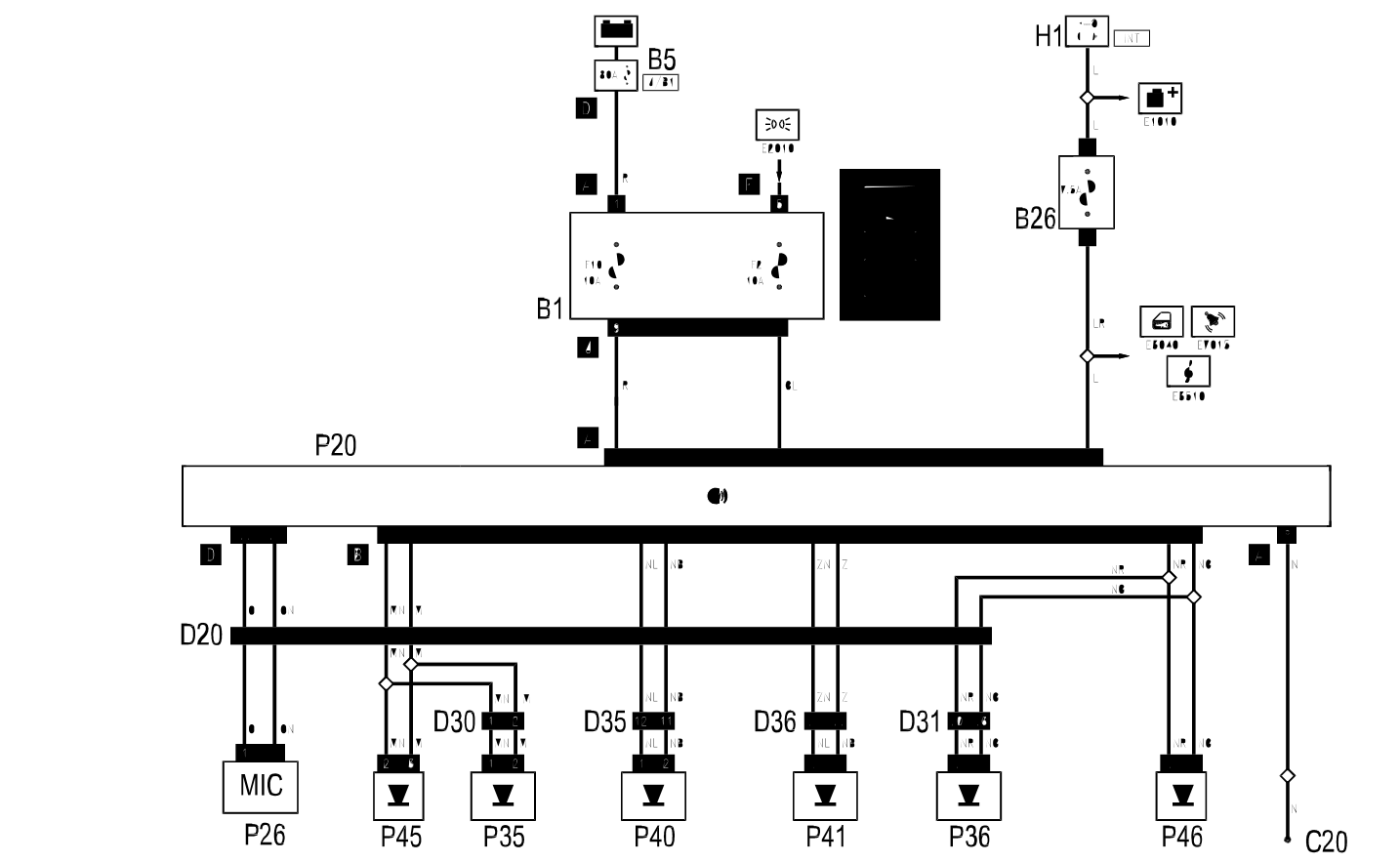

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B26 | Fuse power supply ignition operated excl ignition (INT/A) | |
| C20 | Passenger side dashboard earth | |
| P20 | Car radio | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P20 | Car radio | |
| P20 | Car radio | Op. 5570T CAR RADIO AND CAR TELEPHONE |
| P26 | Hands-free 'microphone' | |
| P26 | Hands-free 'microphone' |
