24 Propeller shaft (4x4)Fitting

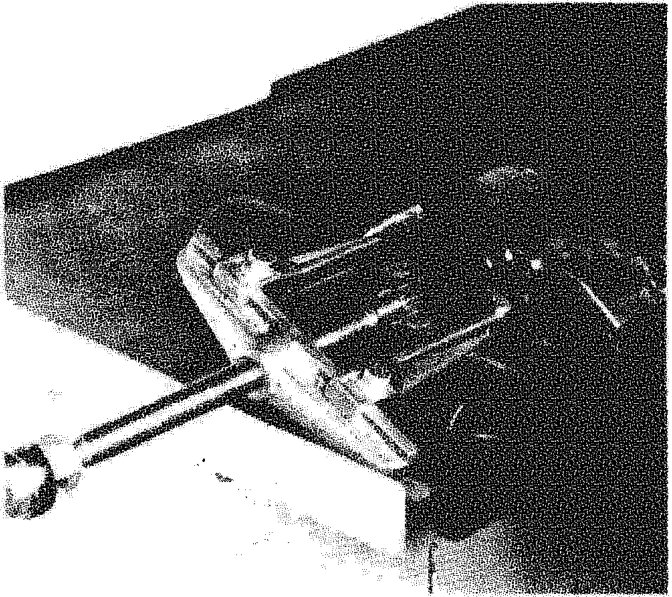

Removing flexible mounting from central propeller shaft using a tool to separate the joint.

Removing flexible mounting from central propeller shaft.

FITTING

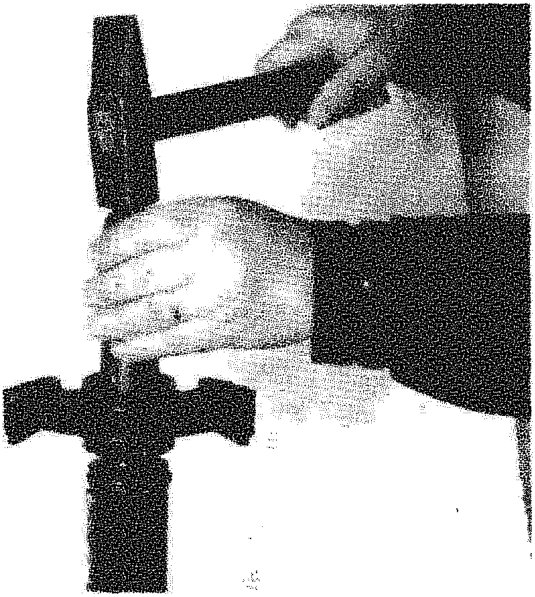

Fitting flexible mounting (complete with bearing) on central shaft using a drift and hammer.

When fitting, make sure that the reference marks on the components which have not been replaced coincide.

Fitting flexible mounting (complete with bearing) on cental shaft using a drift.

2,9 daNm

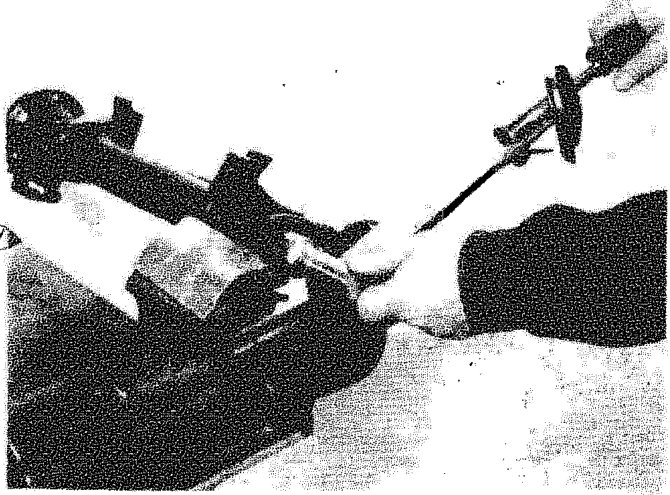

Tightening nut fixing sleeve to fork to torque using a wrench.

Tightening nut fixing sleeve to fork to torque
Stake the nut.
