Brake pads

BRAKE PADS

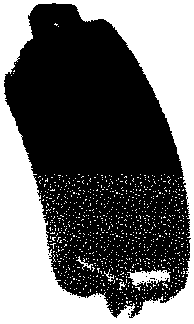

Checking

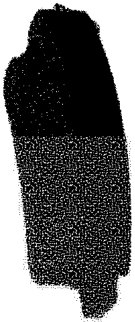

The brake pads must be replaced when the thickness of the lining is less than 1.5 mm. Check that the same type of pads are fitted on each pair of wheels.

BRAKE CALIPER

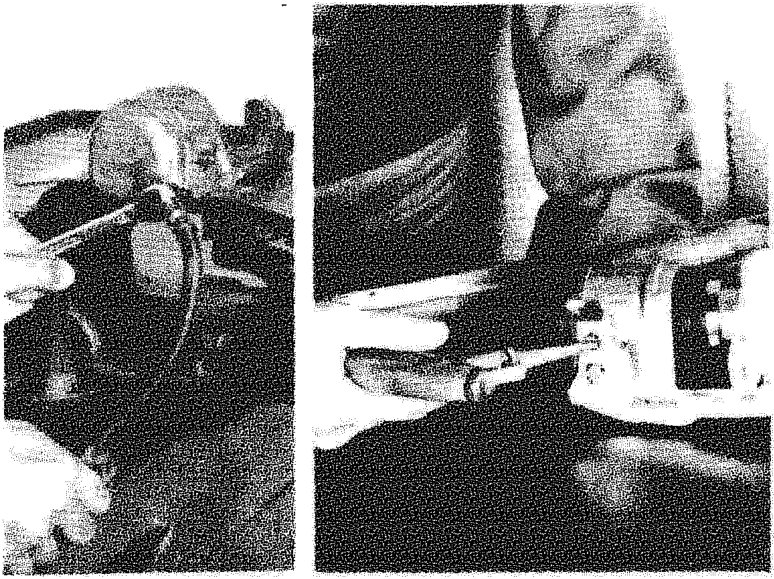

Removing-refitting brake caliper and flexible pipe

The piston is removed from the casing by directing a jet of compressed air in the brake fluid inlet hole.

NOTE There should not be any bulges or cracks in the pipe or it has to be replaced.
It is advisable to replace both pipes.
The parts concerned with brake fluid before fitting.

Checking caliper unit components

There must not be any traces of abrasion or seizing on the piston or the caliper casing or the entire unit must be replaced. In any case, it is always necessary to replace the protective boot and the seal and to ensure that the air bleed screw is not obstructed.

Use a solution of hot water and FIAT LDC detergent to clean the metal components.

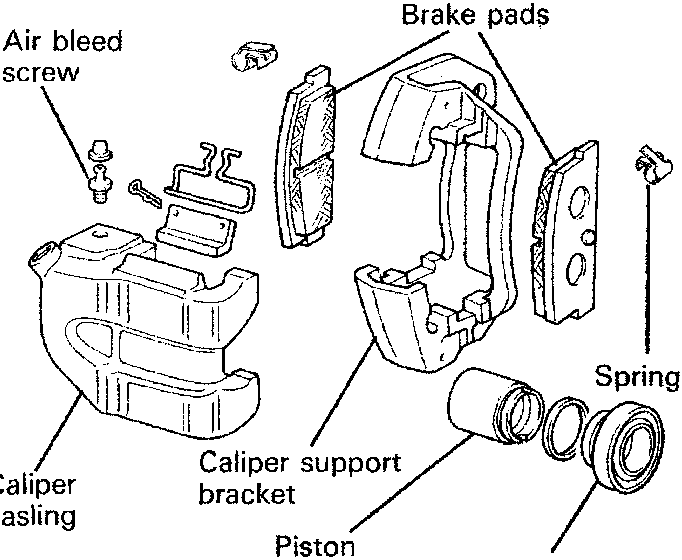

1. Air bleed screw
2. Brake pads
3. Caliper casing
4. Caliper support bracket
5. Piston
6. Springs
7. Seal
