Instrument panel (2000 range) › Connector a

55 Electrical systemConnector a

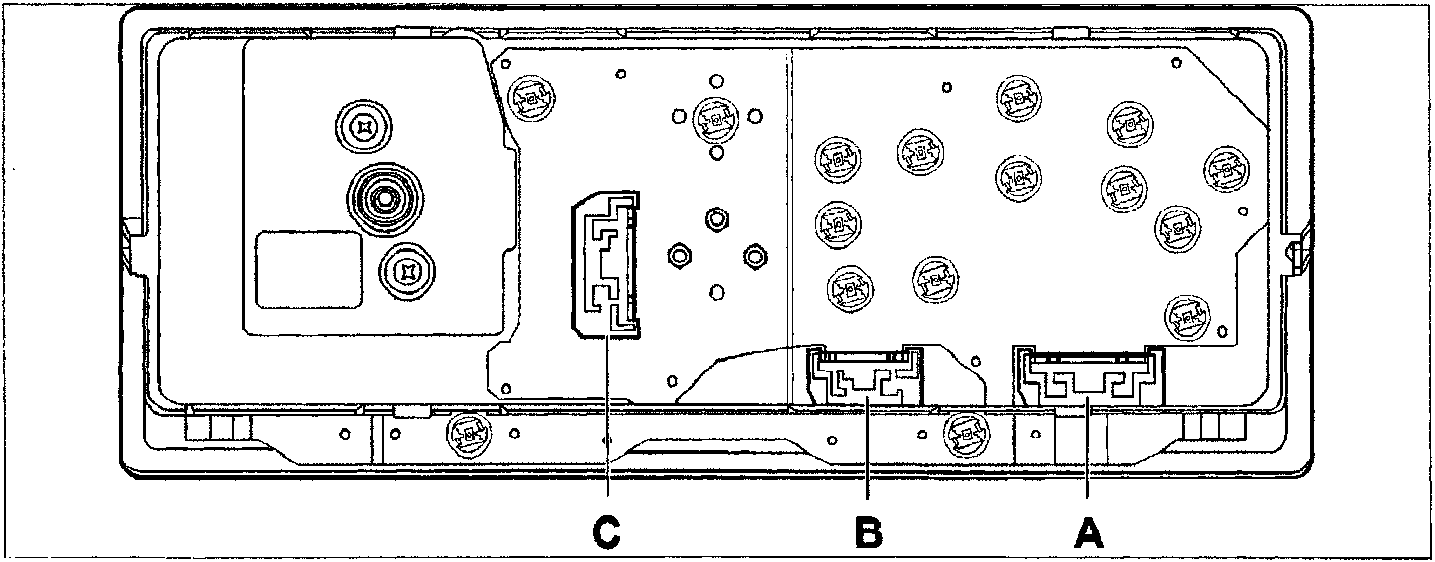

CONNECTOR A

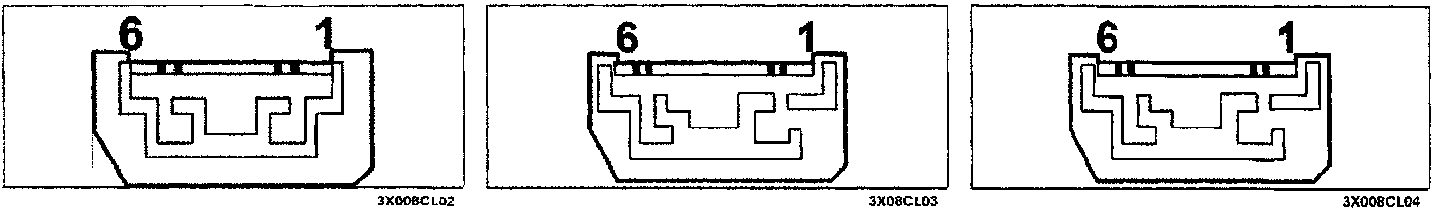

PIN no.	Wiring colour	Circuit involved
1	CB	Shared +
2	HN	Fuel reserve warning light
3	Z	Rear fog lamp warning light
4	RB	Heated rear windscreen warning light
5	RN	Hazard light warning light
6	H	Right dipped beam headlamp

CONNECTOR B

PIN no.	Wiring colour	Circuit involved
1	H	Four wheel drive activated warning light
2	L	Injection/EOBD failure warning light
3	HG	Low engine oil pressure warning light
4	NZ	Battery recharging warning light
5	N	Earth
6	VB	Engine coolant temperature gauge

CONNECTOR C

PIN no.	Wiring Colour	Circuit involved
1	GR	Side light and instrument lighting warning light
2	BR	Direction indicators warning light
3	VN	Main beam headlamps warning light
4	SN	Fuel level gauge
5	AN	Key +
6	ZB	Insufficient brake fluid level and handbrake applied warning light
