Rear fog lamp control unit
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Various devices (2000 range) › Rear fog lamp control unit
55 Electrical systemRear fog lamp control unit
REAR FOG LAMP CONTROL UNIT

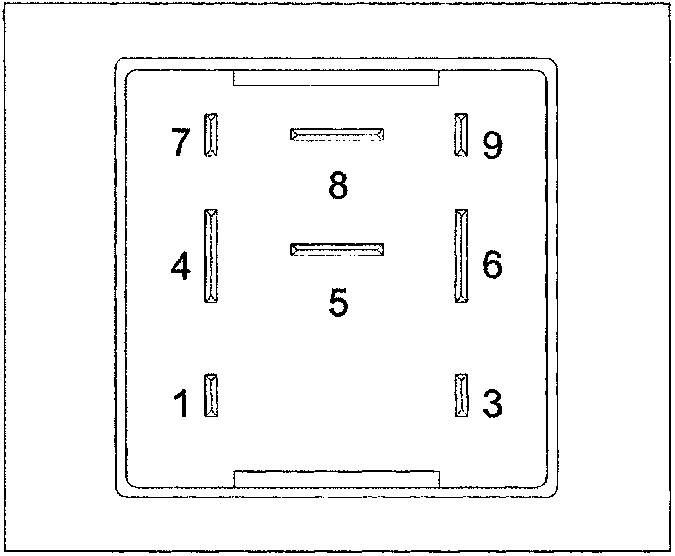

| PIN NO. |
DESCRIPTION |
|---|---|
| 1. | Signal from dipped - main beams |
| 3. | Signal from fog lamp |
| 4. | Negative |
| 5. | Output to warning light |
| 6. | From ignition-operated device (+15) |
| 7. | Supplementary signal |
| 8. | Output to rear fog lamp |
| 9. | Supplementary control signal |

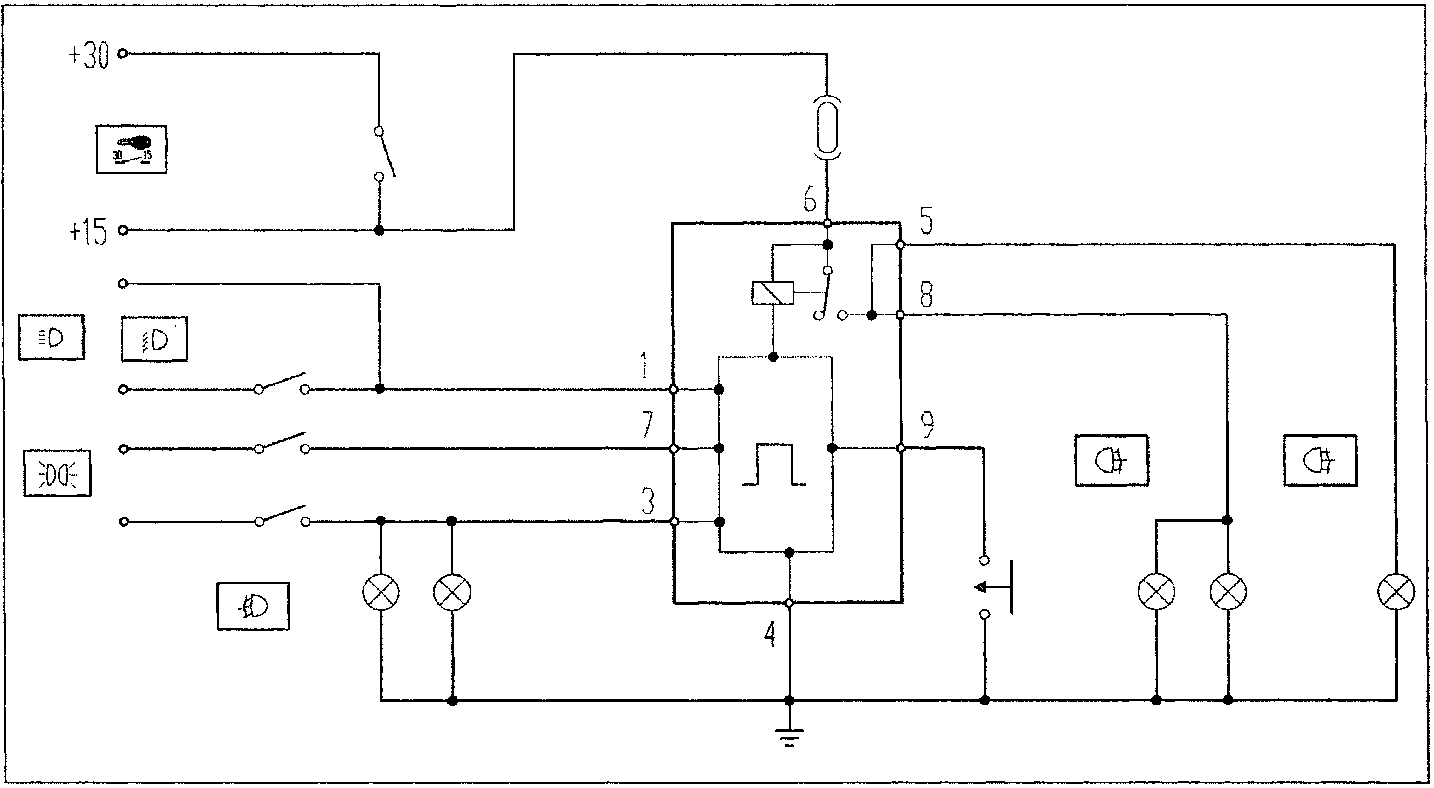

Detail of connections
