SCUFF PANEL SIDE MOULDING (ONE) - R+R

Operation 7055B38 · EXTERIOR PROTECTIONS

Removing

1.2 8v · 4X4

Removing

1. Remove the side strip.

Refitting

Fit the side strip.

1.3 JTD 16v · SUV

Removing

When working on the FRONT door, proceed as follows.

Disconnect the negative battery terminal.

Op. 7005E12 CORNER COVER OF ONE FRONT SIDE DOOR, LH OR RH R R

Op. 7005C44 INTERIOR HANDLE PANEL - R R

Op. 7005D38 FRONT SIDE DOOR MANUAL WINDOW MECHANISM HANDLE RING-NUT - R R

Op. 7005E10 FRONT SIDE DOOR INTERIOR PANEL R R

Op. 5570T91 FRONT SIDE LOUDSPEAKER. (ONE), LEFT OR RIGHT - R.R. WITH DOOR PANEL REMOVED

Op. 7005A04 FRONT SIDE DOOR WATER GUARD PROTECTION - R R OR REPLACE WITH DOOR PANEL REMOVED

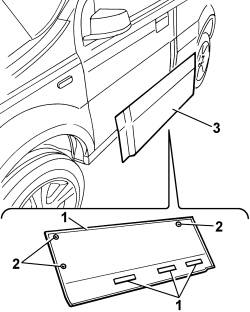

1. Use a blade to cut the adhesive.

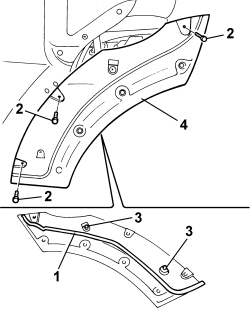

2. Working from inside the wheel arch compartment, undo the studs.

3. Remove the moulding.

When working on the REAR door, proceed as follows.

Op. 7010D38 REAR SIDE DOOR MANUAL WINDOW MECHANISM HANDLE/RING-NUT R R

Op. 7010C44 INTERIOR HANDLE PANEL - R R

Op. 7010E10 REAR SIDE DOOR INNER PANEL - R R OR REPLACE

Op. 5570T93 REAR SIDE LOUDSPEAKER. (ONE), LEFT OR RIGHT - R.R. WITH REAR DOOR PANEL OR WING. REMOVED

Op. 7010A04 REAR SIDE DOOR WATER GUARD PROTECTION - R R OR ARRANGE WITH DOOR PANEL REMOVED

1. Remove the retaining clips.

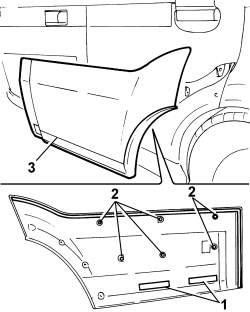

1. Use a blade to cut the adhesive.

2. Working from inside the wheel arch compartment, undo the studs.

3. Remove the moulding.

1. Use a blade to cut the adhesive.

2. Undo the retaining bolts.

3. Release the fastening studs.

4. Remove the moulding mount.

Refitting

When working on the FRONT door, proceed as follows.

Thoroughly clean the area of the roof where the moulding will be bonded and remove any previous residues (where fastened to the same door).

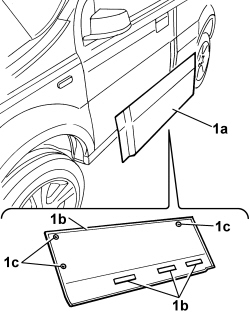

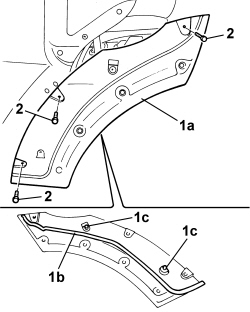

1. Position the moulding (1a) in its seat and secure using adhesive (1b) and studs (1c).

If the moulding removed previously is re-used, clean off any adhesive traces and apply a new adhesive with the same properties.

Op. 7005A04 FRONT SIDE DOOR WATER GUARD PROTECTION - R R OR REPLACE WITH DOOR PANEL REMOVED

Op. 5570T91 FRONT SIDE LOUDSPEAKER. (ONE), LEFT OR RIGHT - R.R. WITH DOOR PANEL REMOVED

Op. 7005E10 FRONT SIDE DOOR INTERIOR PANEL R R

Op. 7005D38 FRONT SIDE DOOR MANUAL WINDOW MECHANISM HANDLE RING-NUT - R R

Op. 7005C44 INTERIOR HANDLE PANEL - R R

Op. 7005E12 CORNER COVER OF ONE FRONT SIDE DOOR, LH OR RH R R

Connect the negative battery terminal.

When working on the REAR door, proceed as follows.

Thoroughly clean the area of the door where the moulding will be bonded and remove any previous residues (where fastened to the same door).

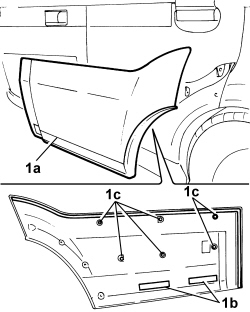

1. Position the moulding (1a) in its seat and secure using adhesive (1b) and studs (1c).

2. Tighten the fixing bolts.

If the moulding removed previously is re-used, clean off any adhesive traces and apply a new adhesive with the same properties.

Thoroughly clean the area of the roof where the moulding will be bonded and remove any previous residues (where fastened to the same door).

1. Position the moulding (1a) in its seat and secure using adhesive (1b) and studs (1c).

If the moulding removed previously is re-used, clean off any adhesive traces and apply a new adhesive with the same properties.

1. Restore the retaining clips.

Op. 7010A04 REAR SIDE DOOR WATER GUARD PROTECTION - R R OR ARRANGE WITH DOOR PANEL REMOVED

Op. 5570T93 REAR SIDE LOUDSPEAKER. (ONE), LEFT OR RIGHT - R.R. WITH REAR DOOR PANEL OR WING. REMOVED

Op. 7010E10 REAR SIDE DOOR INNER PANEL - R R OR REPLACE

Op. 7010C44 INTERIOR HANDLE PANEL - R R

Op. 7010D38 REAR SIDE DOOR MANUAL WINDOW MECHANISM HANDLE/RING-NUT R R
