C050 air bag system earth

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Earths › C050 air bag system earth

Connectors and pin-outsC050 air bag system earth

C050 AIR BAG SYSTEM EARTH

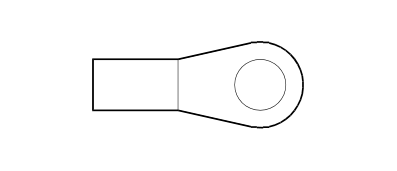

C050A – Rear

Wiring	Colour
See 25 REAR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	NZ		See C053B SIDE BAG + HEAD BAG EARTH (REAR)	1
2	0,5	N		See C053A SIDE BAG + HEAD BAG EARTH (REAR)	1
3	0,35	NZ		See Q031 PASSENGER SIDE BAG	3
4	0,35	N		See Q030 DRIVER'S SIDE BAG	3

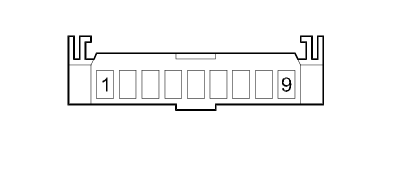

C050B – Dashboard

Wiring	Colour
See 20 DASHBOARD

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	NZ		See M060A AIR BAG CONTROL UNIT (DASHBOARD)	1
1	0,5	NZ		See H075 PASSENGER AIR BAG DISABLING SWITCH	2
