P044 parking sensor buzzer
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Various consumers › P044 parking sensor buzzer
Connectors and pin-outsP044 parking sensor buzzer

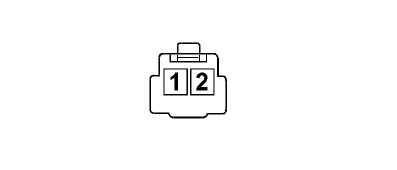

P044 PARKING SENSOR BUZZER
| Wiring | Colour |
|---|---|
| See 25 REAR | bianco |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,35 | RV | See M084 PARKING SENSOR CONTROL UNIT | 22 | |
| 2 | 0,35 | LV | See M084 PARKING SENSOR CONTROL UNIT | 23 | |
