C can line check

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Instrument/guage electrical wiring › C can line check

Electrical equipmentC can line check

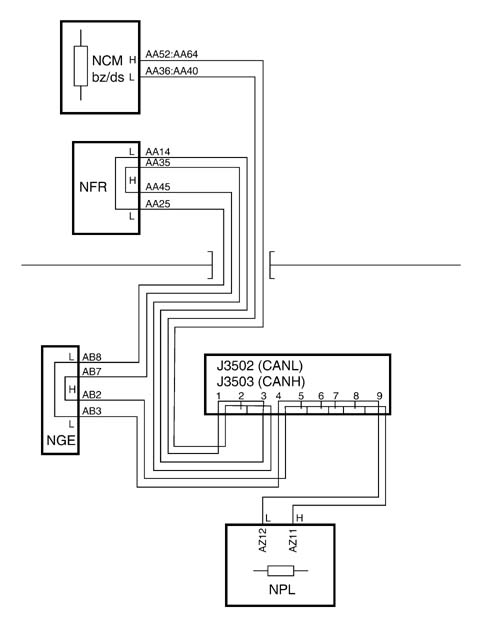

C CAN LINE CHECK

Check 5505OA

A green coloured cable is associated with the C CAN H network whilst a brown coloured cable is associated with the C CAN L network.

• Detach the ABS control unit connector and check that the control unit side circuit resistance is infinite (CA)
• Check that the reading is 120 Ohm when measuring on the wiring side (towards the engine and towards the Body Computer).

17 Electrical
