CONNECT POWER SUPPLY CHECK

Check 5580PO

the Connect can be switched on manually, using the left knob or automatically with the key ON signal. If the Connect has been turned off manually (using the left knob), before turning the ignition OFF, it will not come out automatically at the next key ON.

- With the ignition ON, check that the correct battery voltage is present between pins 4 and 8 of the 8-way Connect connector. If broken, check the wiring.

- Check that there is a permanent 12V voltage between pin 7 of connector A and earth.

- Check the condition of fuse E located at the back of the Connect. If burnt out, search for the cause of the problem and replace it.

- Disconnect the 8-way Connect connector B. Switch the Connect off and on. Check whether there is a component (CD Changer, amplifier, sound boxes, etc.) protecting the radio.

- If none of the above steps has highlighted problems with the signals and the Connect continues not to switch on then it is defective.

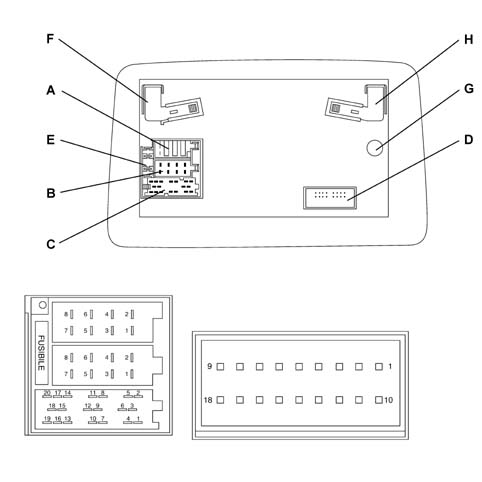

Connect pin out
