SteeringRack and pinion steering box
Rack and pinion steering box
SPECIFICATIONS
Specifications:
- splitter ratio equal to 51 mm/fixed revolution
- steering wheel/wheel angle ratio equal to 15.8°/1°
- steering wheel revolutions: 3 for a rack travel of 152 mm
- turning circle: 9.3 m
SPECIFICATIONS
Specifications:
- splitter ratio equal to 38 mm/fixed revolution
- steering wheel/wheel angle ratio equal to 20°/1°
- steering wheel revolutions: ~ 4 for a rack travel of 152 mm
- turning circle: ~ 9.1 m
Constant ratio steering box
SPECIFICATIONS

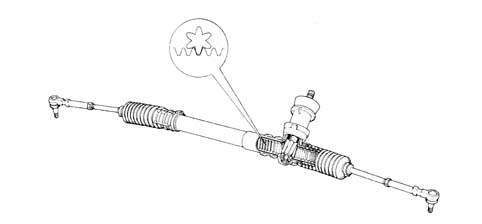

The following figure shows a cross section through the constant ratio steering box and illustrates the rack and pinion teeth schematically.
