00 Introduction and technical dataFront brakes

Front brakes – diagram from the 00 Introduction and technical data chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.

FRONT BRAKES

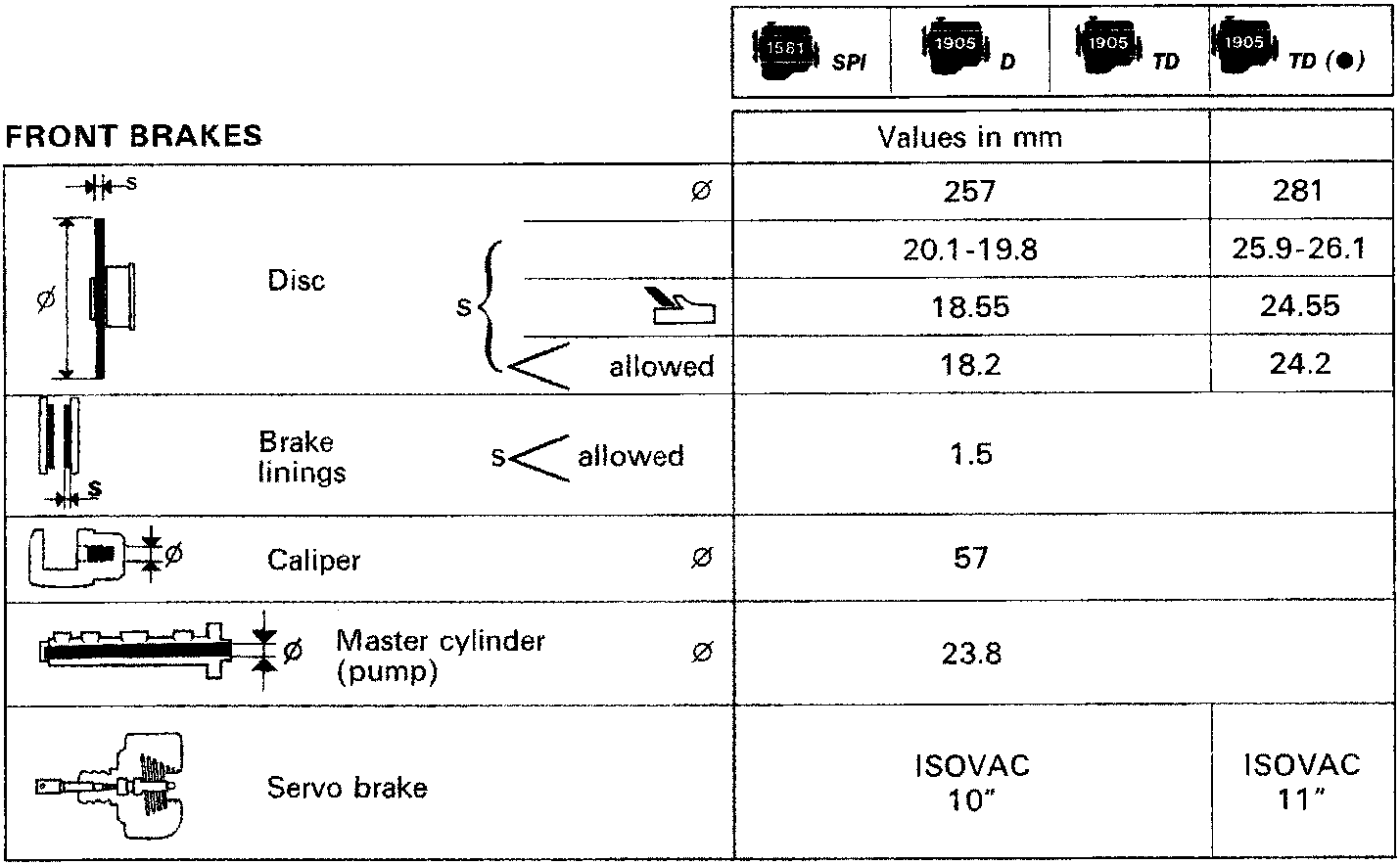

Technical data table for front brakes showing diagrams and specifications for Disc, Brake linings, Caliper, Master cylinder (pump), and Servo brake across engine types SPI, D, TD, and TD (●).

(●) Van 900 kg

REAR BRAKES

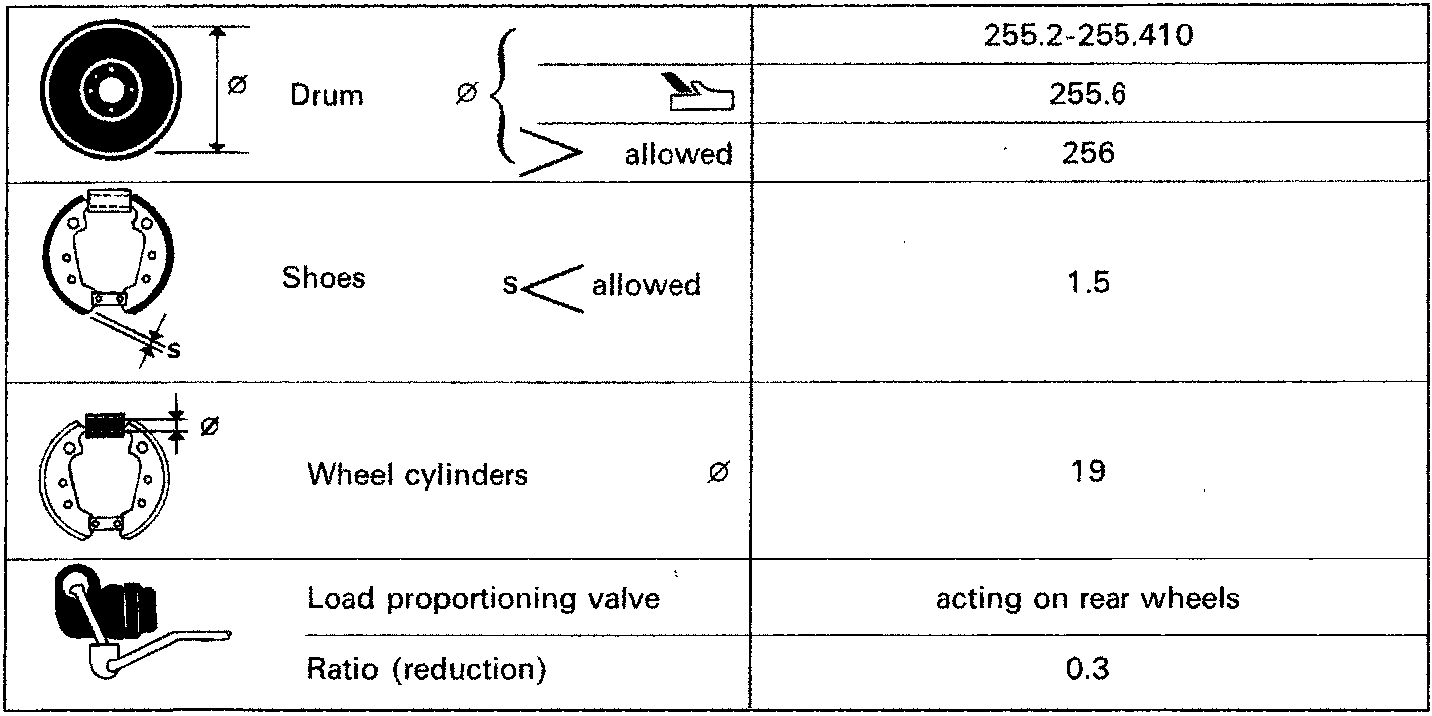

Technical data table for rear brakes showing diagrams and specifications for Drum, Shoes, Wheel cylinders, Load proportioning valve, and Ratio (reduction).
