Front bumper (2004 update) › Reattachment
70 BodyworkReattachment

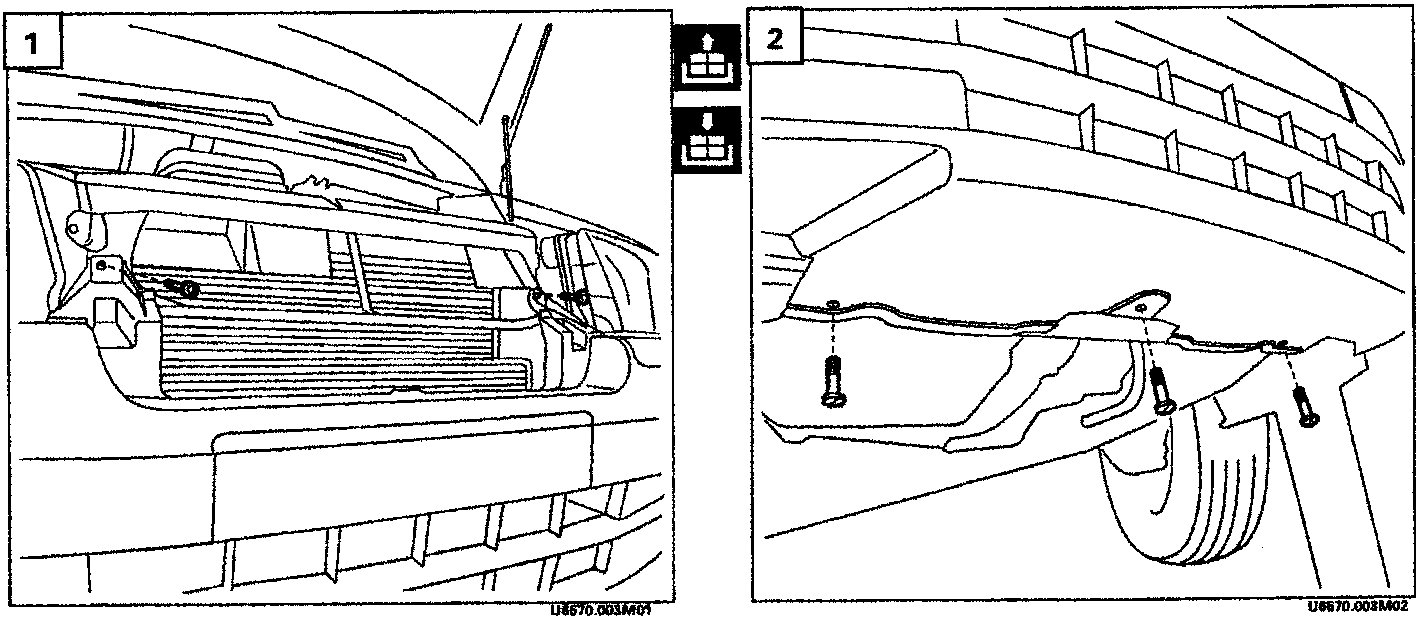

Diagram showing the front of the vehicle with the bonnet open, highlighting the upper mounting area of the front bumper near the headlight and radiator support.
  1. Undo the screws securing the bumper to the bracket located at the front light group.
  2. Undo the screws securing the bumper to the radiator support crossmember.
  3. Detach the front bumper from the vehicle.

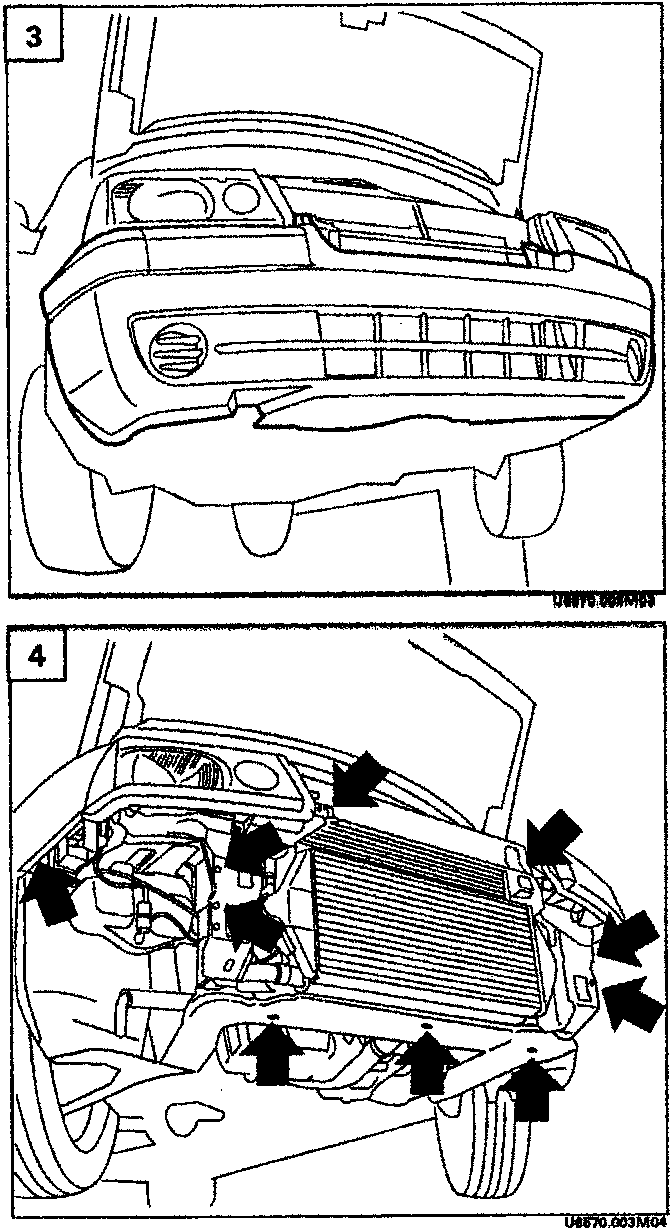

Diagram showing the front view of the vehicle with the bonnet open, illustrating the removal of the front bumper assembly.
  1. Bumper attachment points to the chassis.

Reattachment

To reattach, reverse the sequence of operations performed for detachment.
