Body fittingsSliding door seal - r+r

SLIDING DOOR SEAL - R+R

Operation 7020C18 · SLIDING SIDE DOOR

Removing

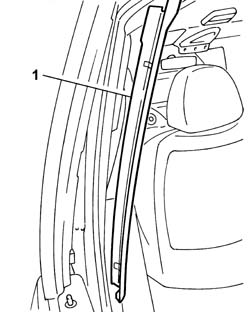

1. Release the pillar cover from the retaining springs and remove it.

Op. 7020C54 SLIDING SIDE DOOR DESCENDING WINDOW GLASS CHANNEL. - R.& R.

Op. 7020C60 GLASS SCRAPER (EXTERNAL) (ONE) LEFT OR RIGHT FOR SLIDING SIDE DOOR DESCENDING WINDOW GLASS S-R

1. Release the front seal from its housing and remove it.

Refitting

- Fit the front seal in the housing in the rear side door.

Op. 7020C60 GLASS SCRAPER (EXTERNAL) (ONE) LEFT OR RIGHT FOR SLIDING SIDE DOOR DESCENDING WINDOW GLASS S-R

Op. 7020C54 SLIDING SIDE DOOR DESCENDING WINDOW GLASS CHANNEL. - R.& R.

- Fit the front pillar trim.

- Attach the front pillar fastening clips.
