TAILGATE INTERIOR PANEL - R+R
Removing
Op. 7015A66 TAILGATE LOCK COVER - R.R.

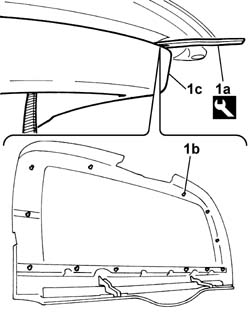

1. Using the special tool (1a), release the tailgate inner panel (1c) from the retaining clips (1b).
| Description | Code | Function | |
|---|---|---|---|
| 1 | Knife | 1.878.077.000 | release the retaining spring |
1. Undo the two bolts fastening the tailgate interior panel assembly and grab handle to the actual tailgate.
1. Remove the tailgate inner panel.
Refitting
- Fit the tailgate inner panel.
- Tighten the two bolts fastening the tailgate interior panel assembly and grab handle to the actual tailgate.
- Attach the inner panel to the fastening clips.
