Wiring diagrams and electrical functionsEarths - wiring diagram

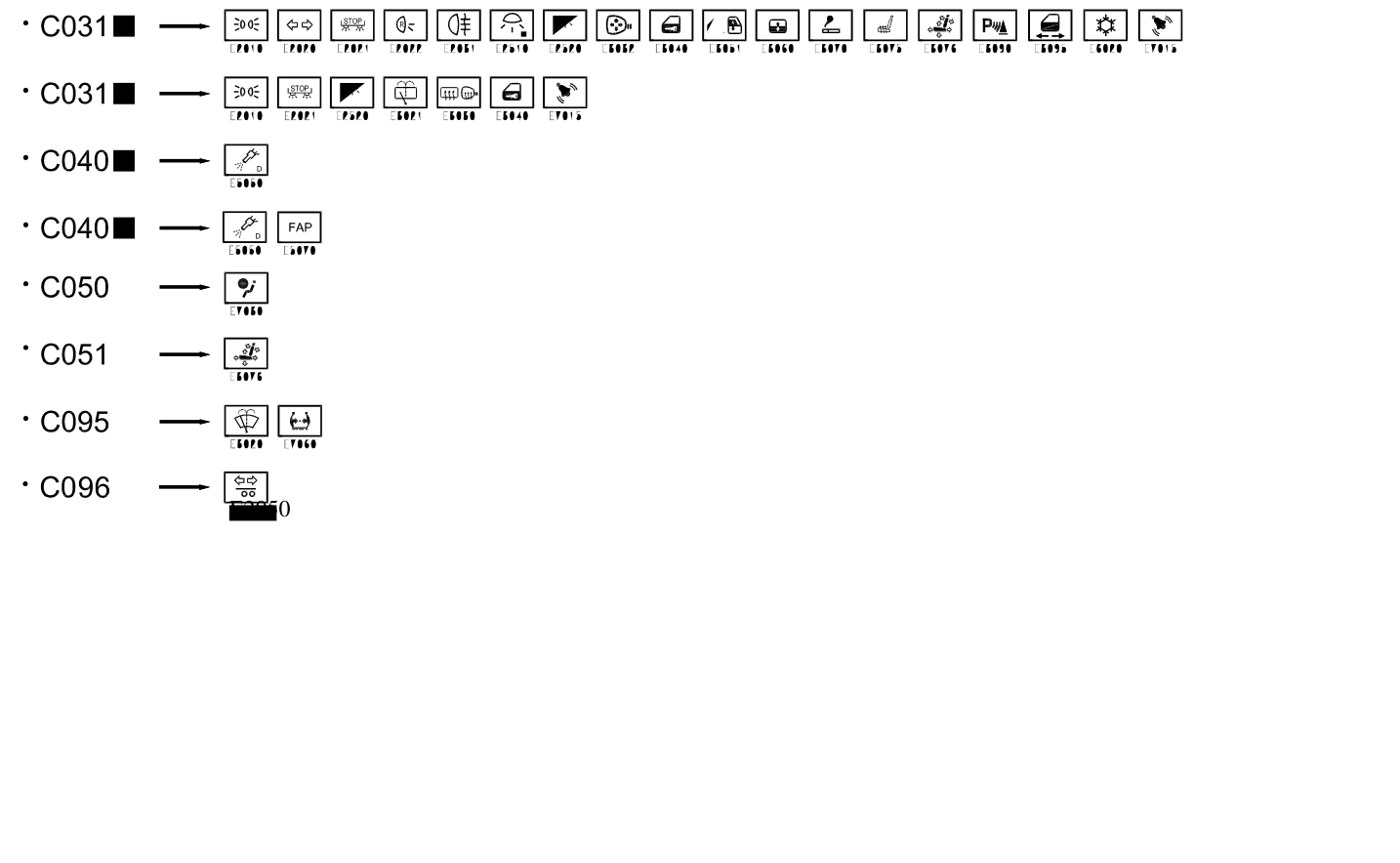

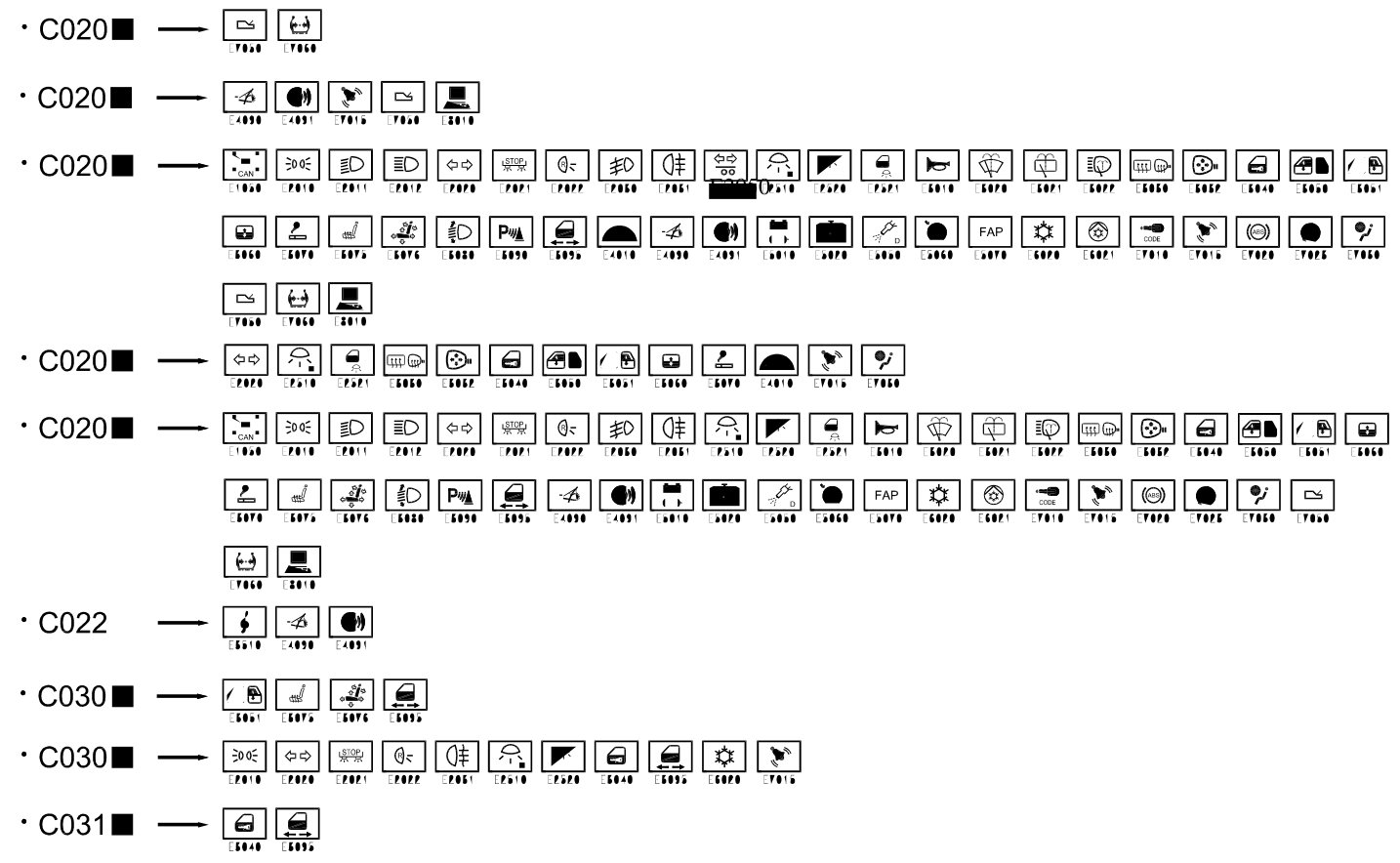

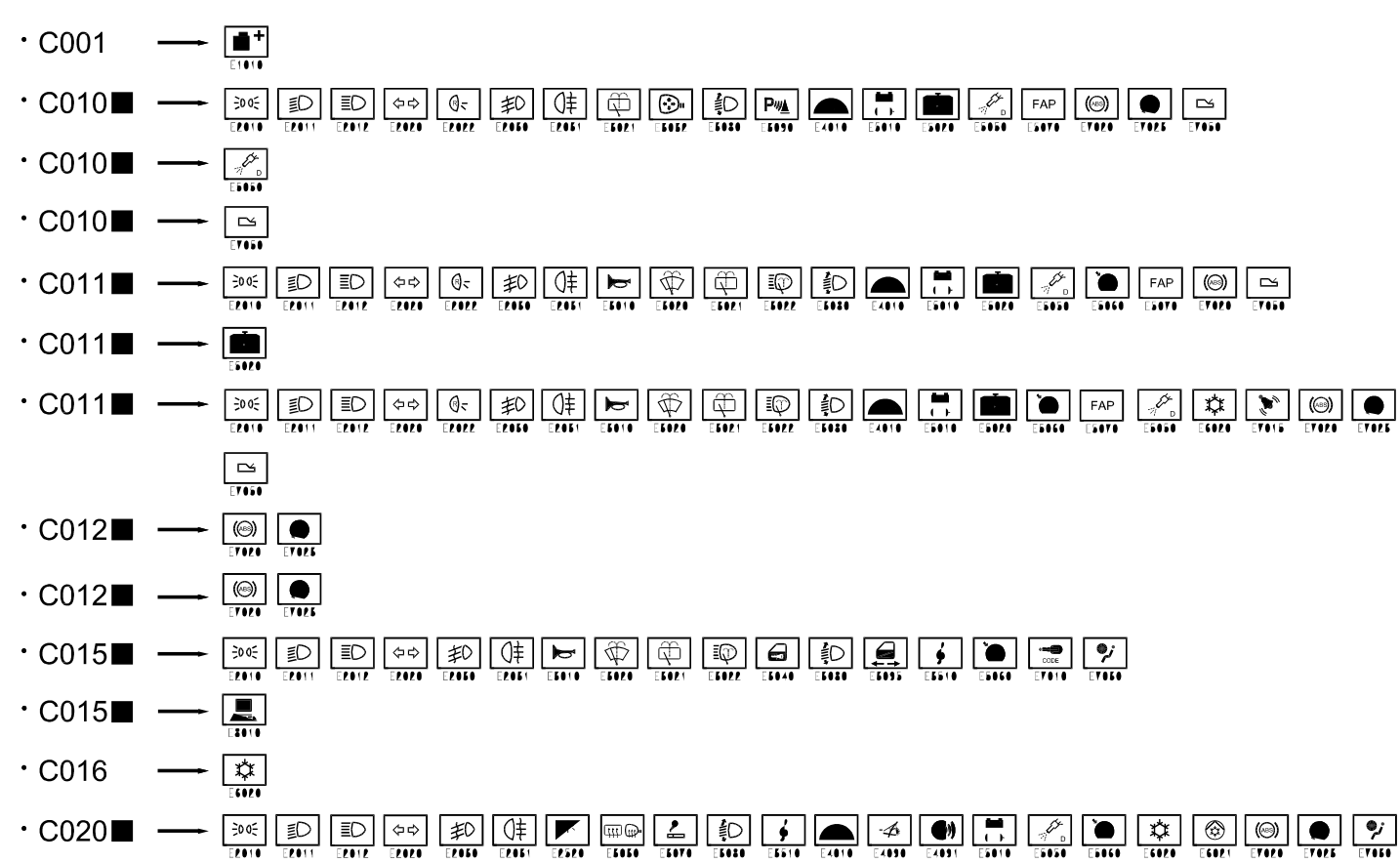

EARTHS - WIRING DIAGRAM
Components
| Component code | Description | Reference to the assembly |
|---|---|---|
| C001 | BATTERY EARTH | |
| C010 | LEFT FRONT EARTH | |
| C011 | RIGHT FRONT EARTH | |
| C012 | ABS FRONT EARTH | |
| C015 | DRIVER''S DASHBOARD EARTH | |
| C016 | AIR CONDITIONING UNIT EARTH | |
| C020 | PASSENGER SIDE DASHBOARD EARTH | |
| C022 | Centre dashboard earth | |
| C030 | LEFT REAR EARTH | |
| C031 | RIGHT REAR EARTH | |
| C040 | EARTH ON ENGINE | |
| C050 | AIR BAG SYSTEM EARTH | |
| C051 | EARTH ON BODYSHELL FOR SEATS | |
| C095 | Tyre pressure control unit earth | |
| C096 | Trailer Bridge Earth |
