Contour V6-153 2.5L DOHC (1996)
Diagnostic Connector - ABS: Diagrams

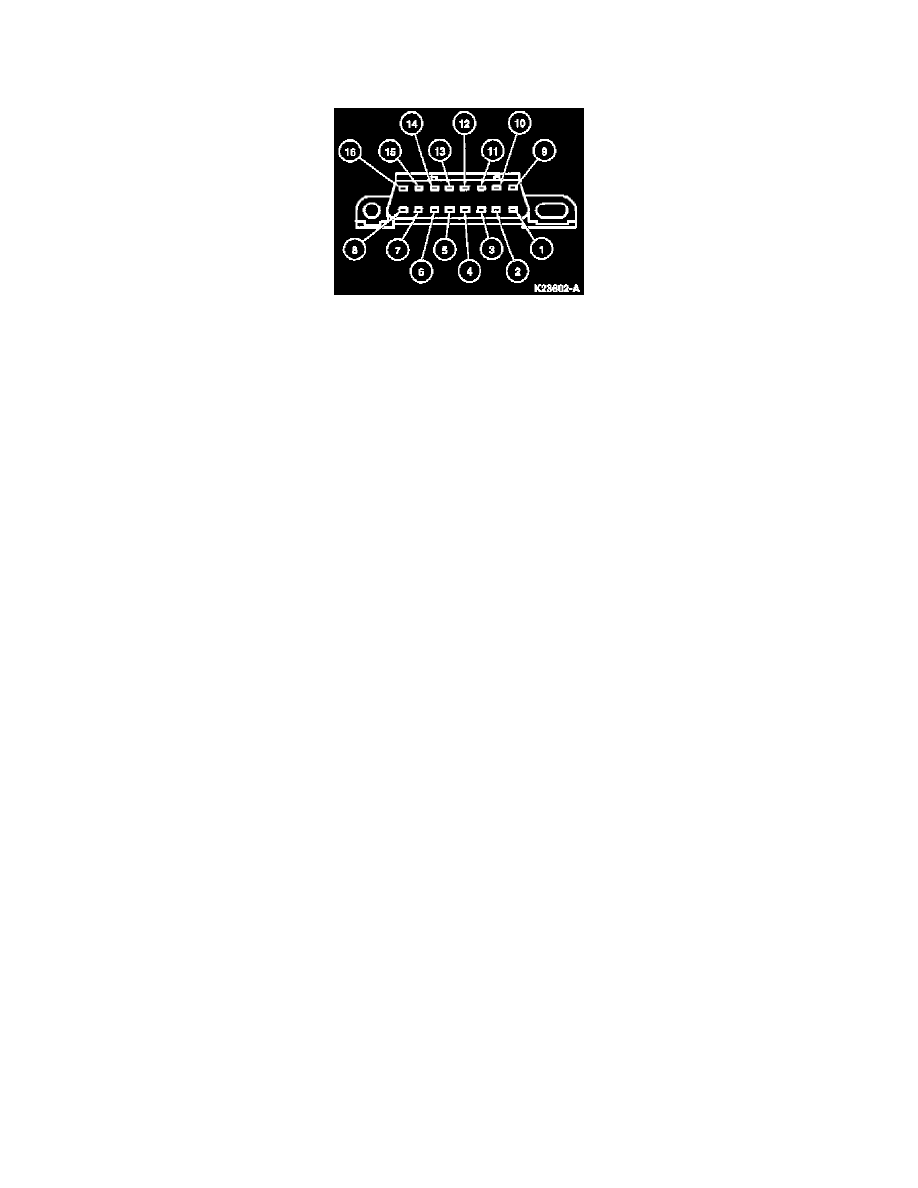

Vehicle Data Link Connector (DLC), located under the left side of the instrument panel.
Pin Number
Circuit
Circuit Function
1
Not Used
2
8 (W/BL)
Multiplex Communication Network Bus (+) Data
Communication Link
3
Not Used
4
31 (BK)
Ground
5
91 (BK/O)
Logic Ground
6
Not Used
7
8 (W/R)
Diagnostic Communication Link
8
Not Used
9
Not Used
10
9 (BN/BL)
Multiplex Communication Network Bus (-) Data
Communication Link
11
Not Used
12
Not Used
13
8 (W/BL)
Powertrain Control Module
14
Not Used
15
Not Used
16
29 (O)
Fused Feed to New Generation Star (NGS)
Tester
