Contour V6-153 2.5L DOHC (1996)

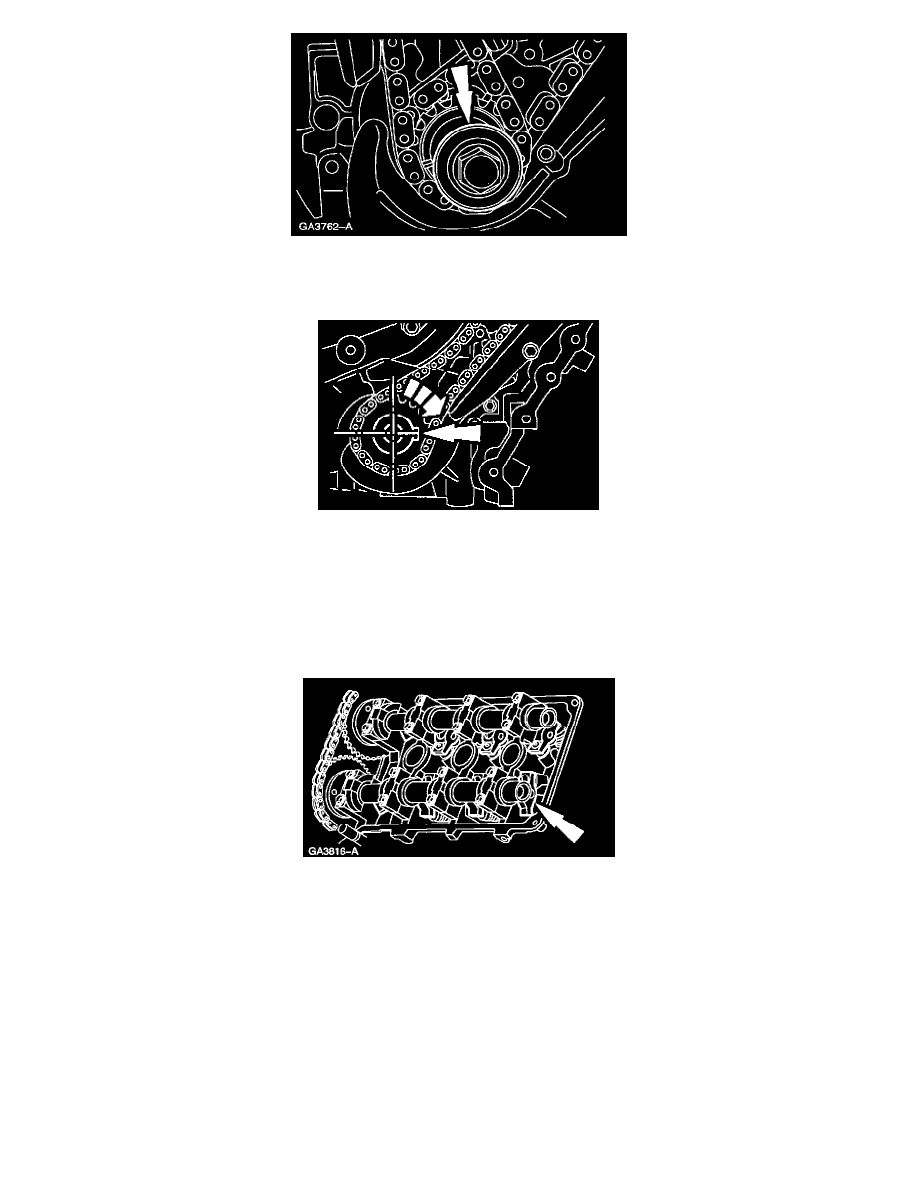

18. Install the crankshaft pulley and bolt.
CAUTION: Rotating the crankshaft counter-clockwise may cause the timing chains to bind and may cause engine damage.
19. Rotate the engine clock-wise to locate the crankshaft keyway to the 3 o'clock position.
CAUTION: The crankshaft keyway must be in the 3 o'clock position prior to installation of the RH cylinder head roller finger followers. Failure
to do so may lead to engine damage.
NOTE:
-
Roller finger followers must be installed in their original locations.
-
Lubricate the roller finger follower with engine assembly lubricant D9AZ-19579-D.
20. Install the RH roller finger followers.
CAUTION: Do not install RH cylinder head camshaft journal thrust caps until camshaft journal caps are installed, or damage to the thrust caps
may occur.
NOTE: With RH cylinder head roller finger followers installed, align camshaft endplay using thrust caps as a guide prior to torquing journal caps.
