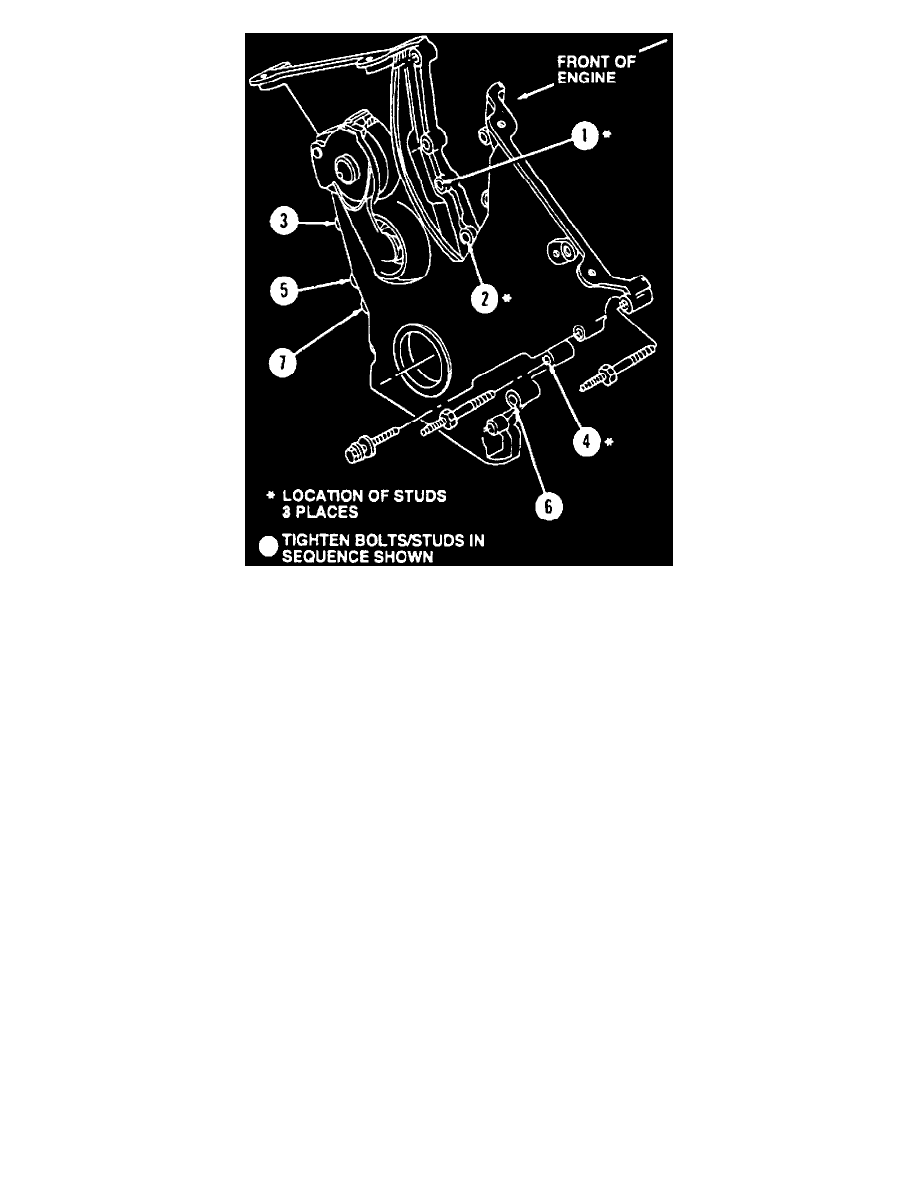

Fig. 22 Front cover bolt & stud bolt installation sequence

4. Install front cover bolts and stud bolts in proper locations and sequence. Tighten cover bolts 1/4 turn after cover contacts cylinder block and

cylinder heads. Install bolts and stud bolts no more than six minutes after applying sealer.
