Contour V6-153 2.5L DOHC (1996)

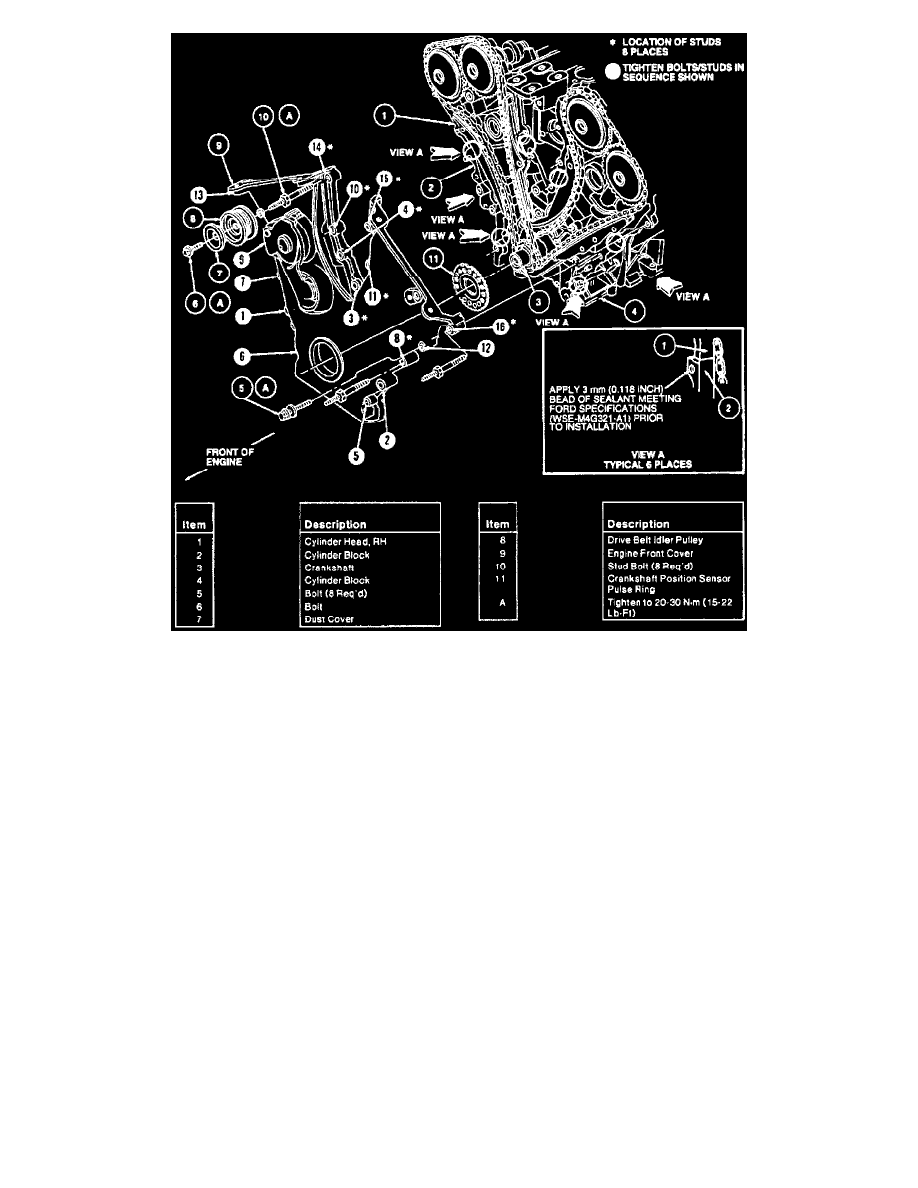

Fig. 21 Front cover installation
5. Install remaining front cover bolts and stud bolts, then torque all front cover bolts and stud bolts in sequence to 15-22 ft lb.
6. Install drive belt idler pulley onto righthand side of front cover.
7. Position fuel charging wiring, then install lower fuel charging wiring bracket retainers and A/C hose bracket to front cover stud bolts.
8. Raise and support vehicle.
9. On models equipped with air conditioning, position A/C compressor.
10. Replace crankshaft front seal if necessary,
11. Install oil pan.
12. Connect fuel charging wiring, CKP and CMP sensor electrical connectors.
13. Install crankshaft pulley.
14. Install alternator bracket and alternator to engine.
15. Install righthand front wheel and tire assembly, then lower vehicle.
16. Lower engine to installed position, then support engine with three bar engine support.
17. Raise and support vehicle, then install front engine support insulator through bolts.
18. Lower vehicle, then install power steering pump support and pump to front of engine.
19. Install power steering pump pulley onto pump, then loosely install bolts.
18. Install accessory drive belt.
19. Tighten power steering pump pulley bolts.
20. Position and connect fuel charging wiring to three connectors on in-line connector bracket at front of righthand cylinder head.
21. Install upper front engine support insulator and upper front engine support bracket.
22. Remove engine support tool, then connect battery ground cable.
23. Fill crankcase to proper level with oil, then fill power steering system with fluid.
24. Run engine and check for leaks, then recheck fluid levels.
