Contour V6-153 2.5L DOHC (1996)

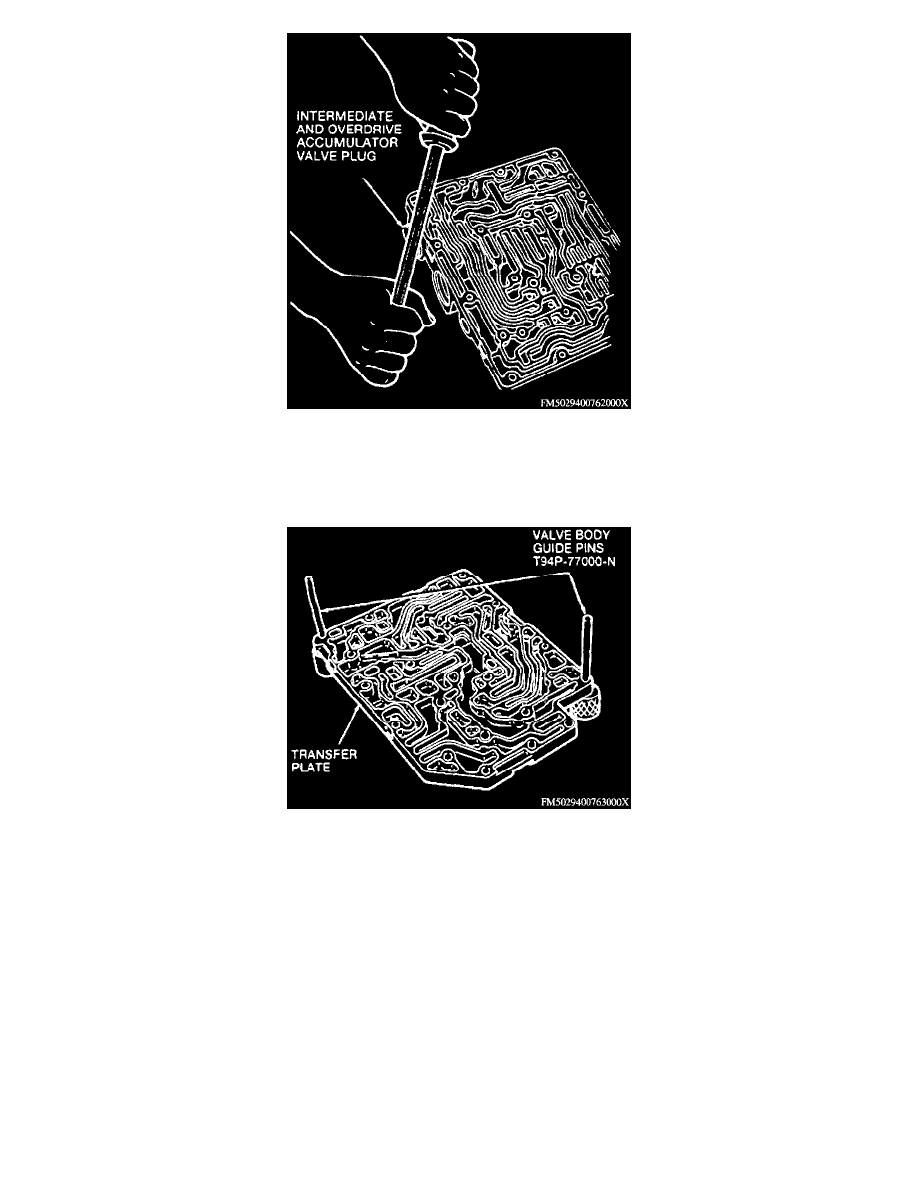

Accumulator Valve Plug Installation
2. Use a suitable screwdriver to install intermediate/overdrive accumulator valve plug as shown in the Accumulator Valve Plug Installation image.
NOTE: Push plug into bore only until it is flush with accumulator body.
Valve Body Guide Pin Installation
3. Install intermediate/overdrive accumulator valve plug retaining plate, then position valve body guide pins tool No. T94P-77000-N or equivalent in
transfer plate as shown in the Valve Body Guide Pin Installation image.
4. Install valve body separator plate gaskets, separating plate, and control valve body on transfer plate.
5. Install accumulator body separator plate and gaskets, then the accumulator body on control valve body.
6. Install accumulator body to transfer plate bolts and control valve body to transfer plate bolts and tighten.
7. Install pressure tap plate, gasket, and bolts on accumulator body assembly and tighten.
8. Install solenoid valve body, gasket, and bolts on accumulator body assembly, noting the following:
a. Match solenoid valve body gasket to passages.
b. Tighten bolts.
9. Remove valve body guide pins, then install manual valve.
